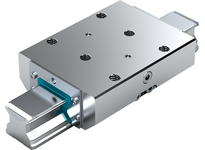

Bosch Rexroth R181054211 CLAMPING ELEMENT KWH 5505 BS1A
MODEL R181054211
$5,557.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Accessories for
Runner Block
Dimension A (profiled rail systems) [mm]
140
Dimension B1 [mm]
184
Dimension B3 [mm]
204
Dimension E1 [mm]
116
Dimension E2 (profiled rail systems) [mm]
95
Dimension E3 (profiled rail systems) [mm]
70
Dimension F [mm]
16
Dimension H [mm]
70.0
Dimension H1 (profiled rail systems) [mm]
58
Dimension N1 (profiled rail systems) [mm]
18
Dimension N2 (profiled rail systems) [mm]
13.7
Dimension S1 (profiled rail systems) [mm]
12.5
Dimension S2 thread diameter (profiled rail systems) [mm]
M14
Displacement [cm³]
2.4
Displacement footnote
Per clamping
Holding force [N]
13700
Nominal size [mm]
55
Hydraulic clamping unit KWH*), FLS for roller rail systems
Size = 55
Can be used on all SNS roller guide rails
*)Zimmer GmbH
- Very high axial holding forces
- Dynamic and static stabilization in the axial direction
- Compact design, compatible with DIN 645
- Clamps and brakes with pressure
- Can be used on all SNS roller guide rails
- Threaded on both sides for the hydraulic connection
- Solid, rigid steel housing, chemically nickel-plated
- High positioning accuracy
- Integrated all-round sealing
- Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage
- Integrated positive-locking, large-surface contact profiles for maximum axial rigidity
- 10 million clamping cycles (B10d value)
