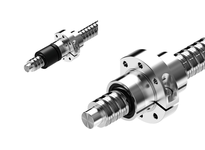

Bosch Rexroth R151206055 SEM-E-C 16X16RX3-3
MODEL R151206055
$954.46 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Bearing temperature max [°C]
+80
Bearing temperature min [°C]
-15
Category
B
Dimension d1 [mm]
15
Dimension D1 f9 [mm]
28
Dimension D1 max [mm]
27.978
Dimension D1 min [mm]
27.95
Dimension d2 [mm]
12.9
Dimension D5 [mm]
48
Dimension D6 [mm]
38
Dimension D7 [mm]
5.5
Dimension L [mm]
61
Dimension L10 [mm]
23
Dimension L3 [mm]
15
Dimension L4 [mm]
20
Dimension L5 [mm]
23
Dimension L8 [mm]
10
Dimension L9 [mm]
44
Dimension Sx [mm]
4
Direction of lead
Right
Dynamic load capacity C [N]
11200.0
Hole pattern
BB2
Maximum operating temperature [°C]
+80
Maximum permissible linear speed vmax (m/min) [m/min]
96.0
Minimum operating temperature [°C]
-10
Nominal size [mm]
16 x 16R x 3 - 3
Nut type
SEM-E-C zero-clearance adjustable single nut
Screw drive seal
With seal
Series
Standard series
Static load capacity C0 [N]
12000.0
Adjustable-preload single nut SEM-E-C with standard seal and standard axial clearance
Nominal diameter d0 = 16
Lead P = 16 (right)
Ball diameter Dw = 3
Number of ball track turns i = 3
- Mounting dimensions similar to DIN 69051, Part 5 flange type C
- With seals
- Adjustable preload
- Tolerance grade: T3 (for sizes as per the product overview for screws, see General Technical Notes and Information "Product description"), T5, T7
