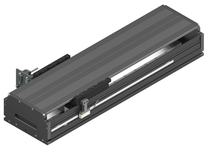

Bosch Rexroth R040636839 LINEAR MOTOR MODUL LMM-180-NN-1
MODEL R040636839
$11,358.93 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Base friction force FRs [N]
71
Carriage length Lca [mm]
224
Continuous current at 100 °C [A]
6.8
Continuous nominal force FdN at 100 °C [N]
366.0
Counter EMK constant KEMK [Vs/m]
44.0
Dynamic load capacity, guideway Cgw [N]
47111
Dynamic longitudinal moment load capacity ML [Nm]
3710.0
Dynamic torsional moment load capacity Mt [Nm]
2803.0
Graduated lengths [mm]
84
Height [mm]
108.0
Intermediate circuit voltage Vdc [V]
600
Length L [mm]
1456.0
Max Force [N]
800.0
Maximum acceleration rate amax [m/s²]
250.0
Maximum current [A]
6.8
Maximum permissible linear speed vmax [m/s]
3.0
Maximum permissible moving external load mex max [kg]
20.0
Maximum travel range smax [mm]
1192.0
Motor
IC-250B-075-W2
Motor attraction Fatt [N]
1640
Motor type
Linear motor with iron core
Nominal size [mm]
Lmm-180
Width [mm]
180.0
Linear motor module LMM-180-NN-1
Size = 180
Length (L) = 1456 mm
Maximum travel range = 1192 mm
Version = MA01 - with linear motor
Guideway = 001 - frame with ball rail system
Drive = 052 - linear motor with iron core, type IC-250B-075-W2
Carriage = 052 - carriage length 224 mm
Cover = 001 - with cover plate
Length measuring system = 005 - optical, absolute, resolution 0.05 µm, BiSS-C interface
Lubrication = LSS - standard lubrication
Documentation = 001 - standard final testing
