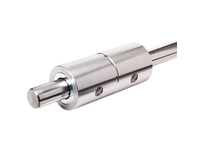

Bosch Rexroth R072254087 LINEAR-SET LSHDR2T-40-WV-1200
MODEL R072254087
$1,679.02 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Dimension b P9 [mm]
8
Dimension D h6 [mm]
80
Dimension D1 [mm]
62
Dimension L H11 [mm]
176
Dimension L1 [mm]
45
Dimension t [mm]
4
Dynamic load capacity C [N]
10200.0
Dynamic torsional moment load capacity Mt [Nm]
140.0
Format of linear bushings
H - Sleeve design
Maximum acceleration rate amax [m/s²]
150.0
Maximum permissible linear speed vmax [m/s]
3.0
Series
Torque
Shaft diameter d [mm]
40.0
Standard length l of the shaft [mm]
600
Static load capacity C0 [N]
8700.0
Type
Linear set
Linear set (steel)
Compact LB, sleeve version, tandem
Ball guide grooves = 2
Shaft diameter d = 40
Shaft included
1200 = standard length as per table
Without seal
Version: Standard
- Compact steel sleeve
- Two torque-resistant compact linear bushings
- One ball guide groove for diameter shafts 12 and 16 mm
- Two ball guide grooves for diameter shafts 20 mm and higher
- Keyway for torque transmission
- Torque-transmitting, hardened steel bearing plates set to zero clearance ex works
- Stability against cocking loads
- External seals
- Relubricatable
