Pramet A20R-SVJBL 11 boring bar, ISO S, left hand, 7.874 in functional length, 0.984 in minimum bore diameter, 0.787 in connection diameter, screw clamping through hole, for VB.. inserts, coolant supply.
MODEL 6759717
$189.31 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

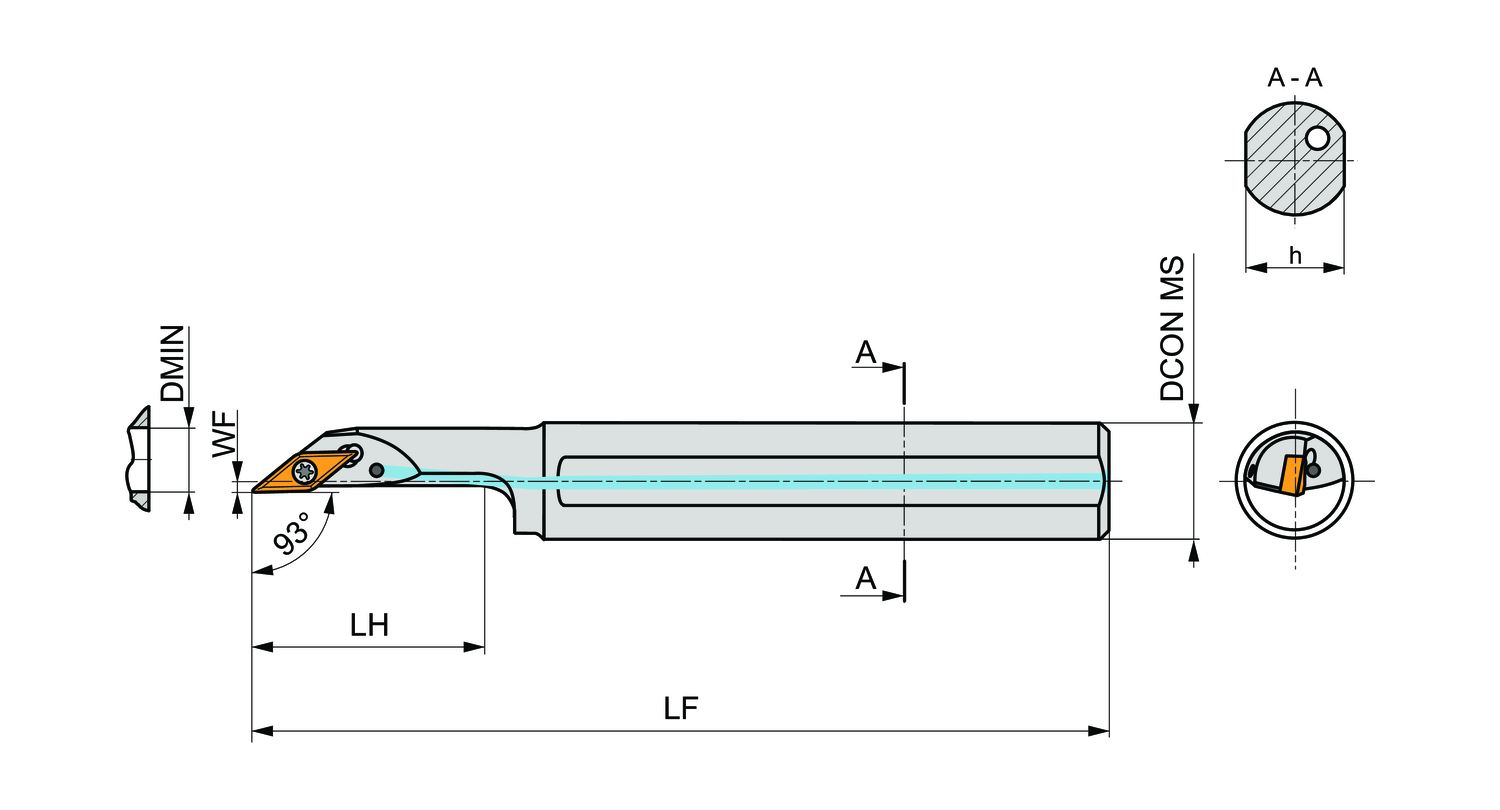

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
7.874
Functional length - millimeter (LF)
200
Functional width - inch (WF)
0.079
Functional width - millimeter (WF)
2
Head length - inch (LH)
1.575
Head length - millimeter (LH)
40
Inclination angle (LAMS)
-5
Minimum bore diameter - inch (DMIN)
0.984
Minimum bore diameter - millimeter (DMIN)
25
Ortogonal rake angle (GAMO)
-5
Shank height - inch (H)
0.709
Shank height - millimeter (H)
18
Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35mm, 3.18mm thick (ISO designation VB.. 1103.. ), left hand 93° side cutting with off-set shank, steel with coolant hole, 20mm diameter x 200mm long for face copy turning
