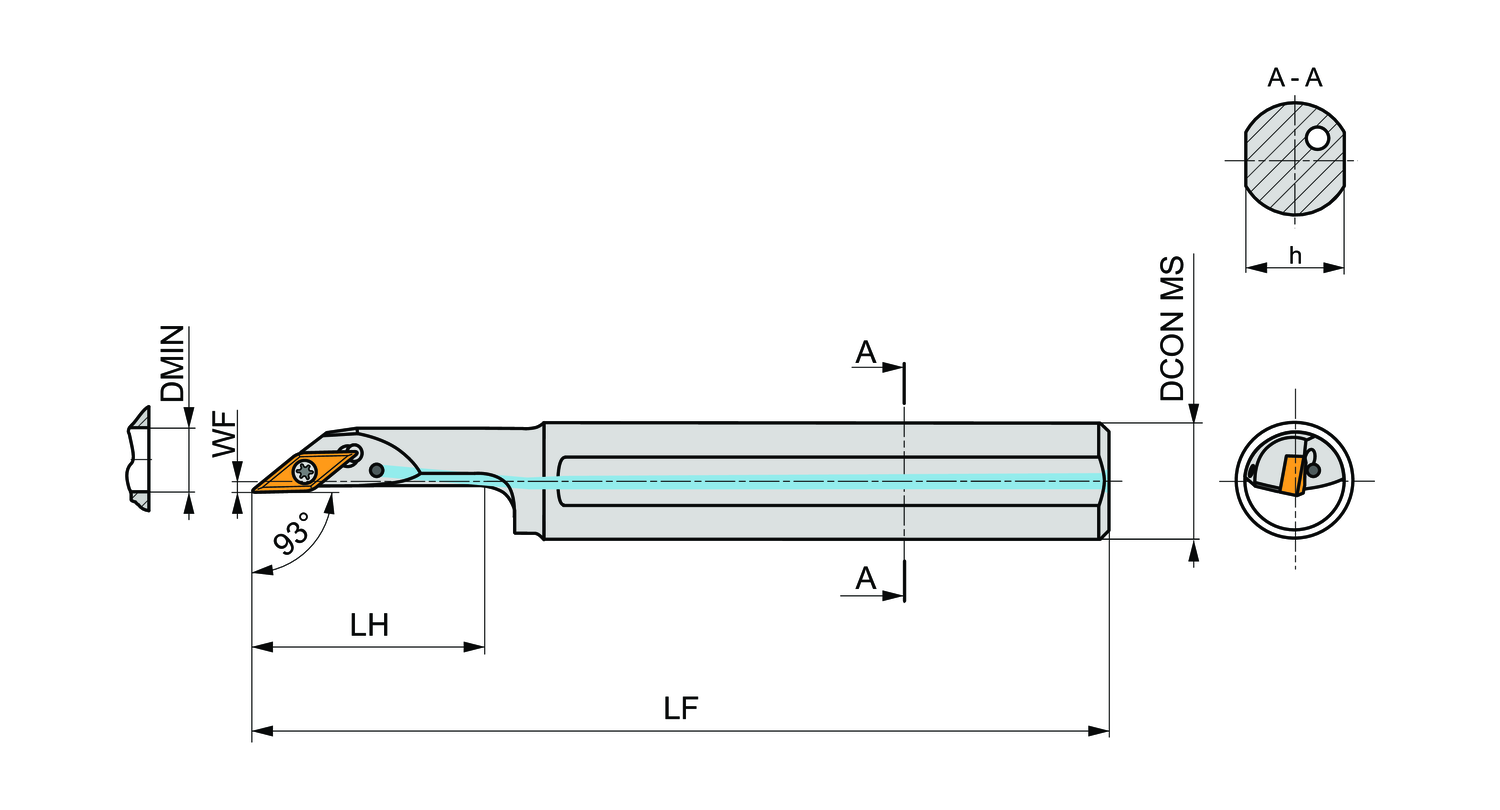

Pramet A20R-SVJBR 11 boring bar, ISO S, right hand, 7.874 in functional length, 0.984 in minimum bore diameter, 0.787 in connection diameter, screw clamping through hole, for VB.. inserts, 93° tool cutting edge angle, coolant supply.

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.787

Connection diameter - millimeter (DCON MS)

20

Coolant supply property (CSP)

1

Direction of tool

Right

Functional length - inch (LF)

7.874

Functional length - millimeter (LF)

200

Functional width - inch (WF)

0.079

Functional width - millimeter (WF)

2

Head length - inch (LH)

1.575

Head length - millimeter (LH)

40

Inclination angle (LAMS)

-5

Minimum bore diameter - inch (DMIN)

0.984

Minimum bore diameter - millimeter (DMIN)

25

Ortogonal rake angle (GAMO)

-5

Shank height - inch (H)

0.709

Shank height - millimeter (H)

18
