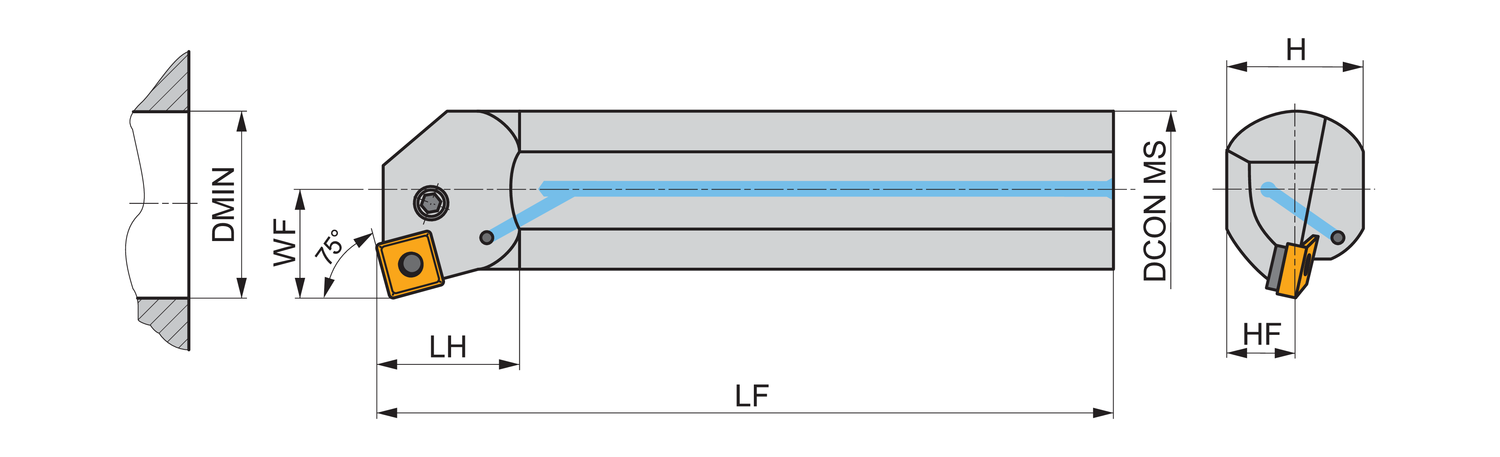

Pramet A32S-PSKNR 12 boring bar — ISO P, right hand, 1.26 in (32 mm) connection diameter, 9.843 in (250 mm) functional length, 1.535 in (40 mm) minimum bore diameter. Article 6757329.

Clamping Type Code (MTP)

Hole clamping

Connection diameter - inch (DCON MS)

1.26

Connection diameter - millimeter (DCON MS)

32

Coolant supply property (CSP)

1

Direction of tool

Right

Functional height - inch (HF)

0.591

Functional height - millimeter (HF)

15

Functional length - inch (LF)

9.843

Functional length - millimeter (LF)

250

Functional width - inch (WF)

0.866

Functional width - millimeter (WF)

22

Hand (Cutting direction)

Right

Head length - inch (LH)

1.772

Head length - millimeter (LH)

45

Inclination angle (LAMS)

-12

Minimum bore diameter - inch (DMIN)

1.535

Minimum bore diameter - millimeter (DMIN)

40

Ortogonal rake angle (GAMO)

-6

Shank height - inch (H)

1.181

Shank height - millimeter (H)

30

Shank width - inch (B)

1.181

Shank width - millimeter (B)

30
