Pramet S06H-SEUPR 05 boring bar — ISO S, right hand, 3.937 in functional length, 0.327 in minimum bore diameter, 0.236 in connection diameter, screw clamping through hole, for EP.. inserts. Article 6760451.
MODEL 6760451
$144.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

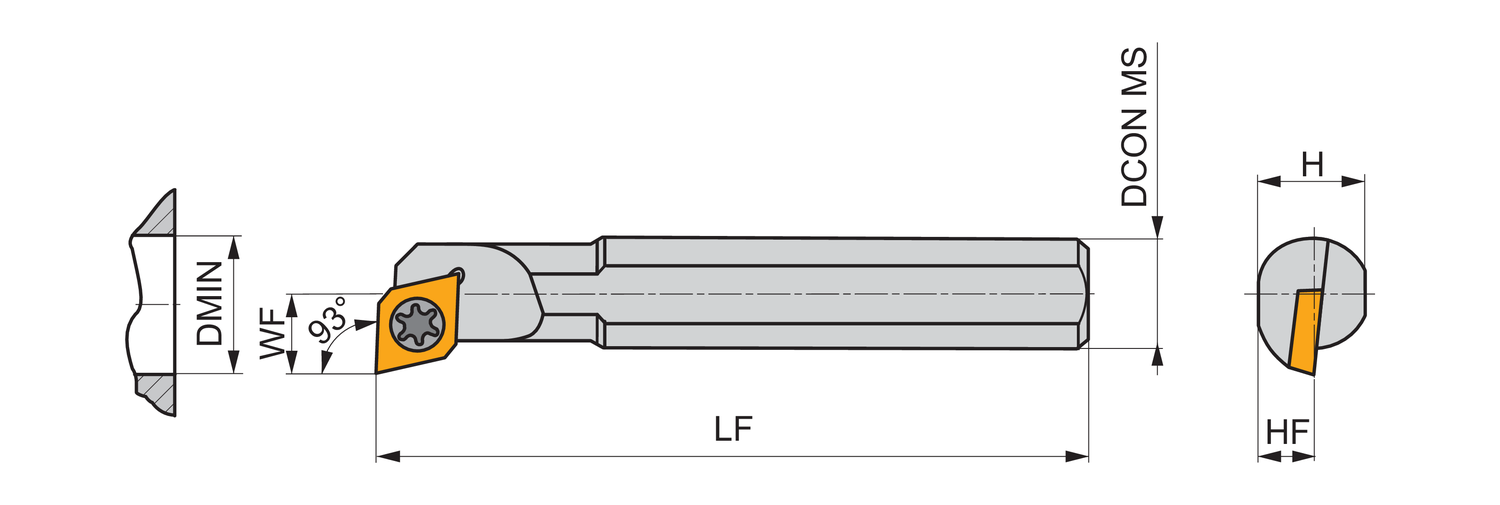

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.236
Connection diameter - millimeter (DCON MS)
6
Direction of tool
Right
Functional height - inch (HF)
0.106
Functional height - millimeter (HF)
2.7
Functional length - inch (LF)
3.937
Functional length - millimeter (LF)
100
Functional width - inch (WF)
0.197
Functional width - millimeter (WF)
5
Inclination angle (LAMS)
-7
Minimum bore diameter - inch (DMIN)
0.327
Minimum bore diameter - millimeter (DMIN)
8.3
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.213
Shank height - millimeter (H)
5.4
Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), right hand 93° end cutting with off-set shank, steel without coolant hole, 6mm diameter x 100mm long for taper boring and longitudinal boring with and without shoulder
