Pramet S16R-SEUCR 08 boring bar — ISO S, right hand, 7.874 in functional length, 0.787 in minimum bore diameter, 0.63 in connection diameter. Screw clamping through hole for EC.. 0803 inserts. Article 6760459.
MODEL 6760459
$144.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

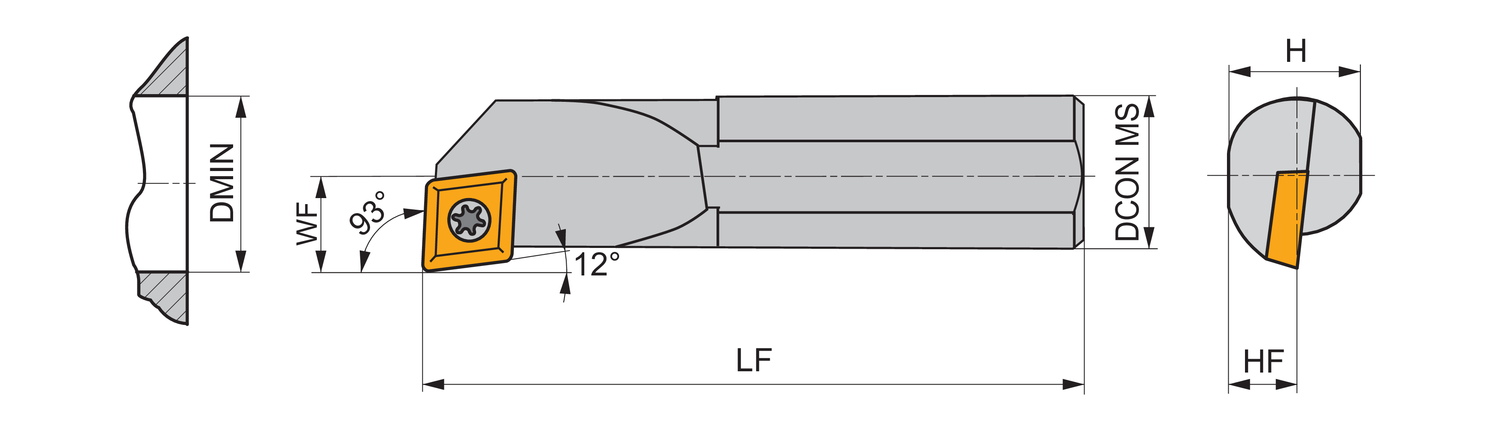

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Direction of tool
Right
Functional height - inch (HF)
0.295
Functional height - millimeter (HF)
7.5
Functional length - inch (LF)
7.874
Functional length - millimeter (LF)
200
Functional width - inch (WF)
0.433
Functional width - millimeter (WF)
11
Inclination angle (LAMS)
-5
Minimum bore diameter - inch (DMIN)
0.787
Minimum bore diameter - millimeter (DMIN)
20
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.591
Shank height - millimeter (H)
15
Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation EC.. 0803.. ), right hand 93° end cutting with off-set shank, steel without coolant hole, 16mm diameter x 200mm long for taper boring and longitudinal boring with and without shoulder
