Pramet C4-DWLNR-13075-06 turning toolholder, polygon shank coupling, ISO D, internal, right hand, 95° cutting edge angle, 2.953 in functional length, 1.063 in minimum bore diameter, for WN.. 0604 inserts. Article 7809872.
MODEL 7809872
$399.77 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

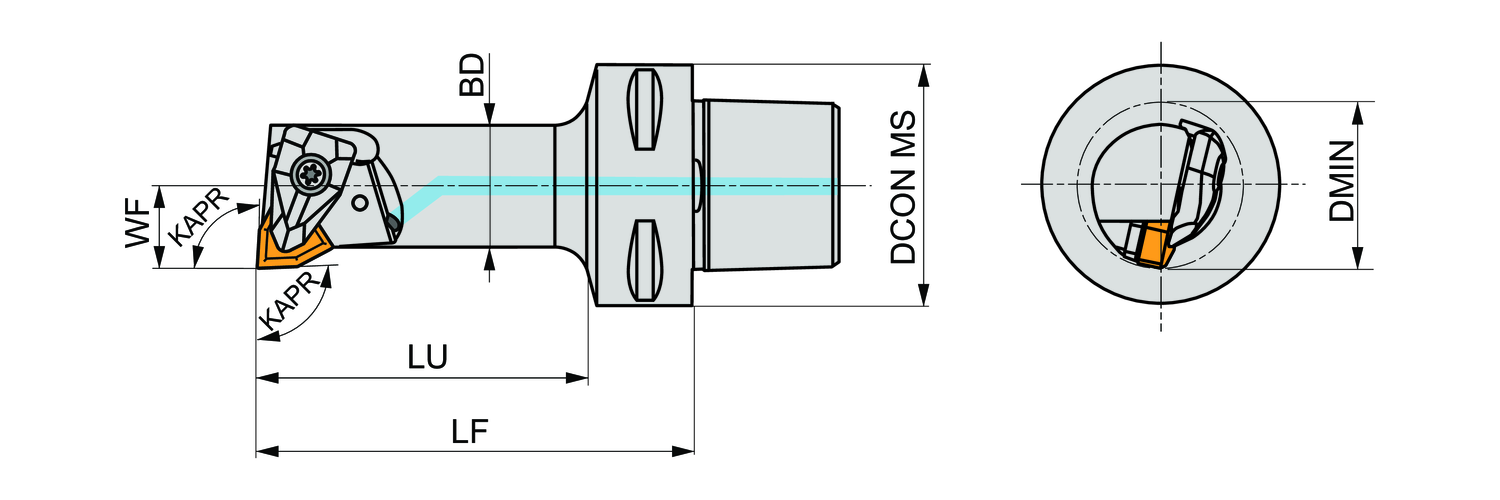

Body diameter - inch (BD)
0.787
Body diameter - millimeter (BD)
20
Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
2.953
Functional length - millimeter (LF)
75
Functional width - inch (WF)
0.512
Functional width - millimeter (WF)
13
Inclination angle (LAMS)
-17
Minimum bore diameter - inch (DMIN)
1.063
Minimum bore diameter - millimeter (DMIN)
27
Ortogonal rake angle (GAMO)
-6
Tool cutting edge angle (KAPR)
95
Usable Length - inch (LU)
2.047
Usable Length - millimeter (LU)
52
Double clamp boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation WN.. 0604.. ), right hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 13mm funtional width and 75mm protruding length for taper boring and longitudinal boring with and without shoulder
