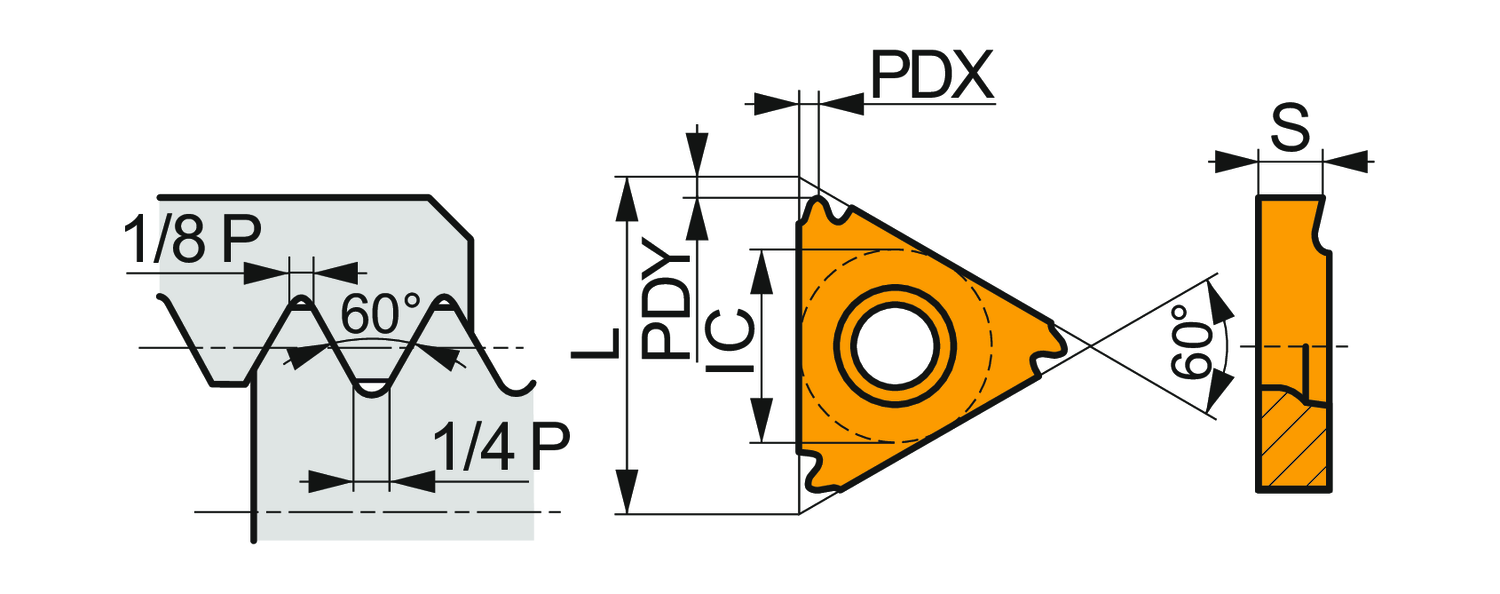

Pramet TN 16EL100M:T8030 external threading insert — TN 16EL100M, 60° ISO-metric full profile, 1 mm pitch, T8030 PVD coated fine grained WC-Co carbide, 0.375 in (9.525 mm) IC, 0.137 in (3.47 mm) thick, left hand. Article 6755198.

Chipbreaker

No chipbreaker

Coating

T8030

Coating property (CTP)

1

Cutting edge length - inch (L)

0.65

Cutting edge length - millimeter (L)

16.5

Inscribed circle diameter - inch (IC)

0.375

Inscribed circle diameter - millimeter (IC)

9.525

Insert shape code (SC)

T - triangular 60° included angle

Insert thickness - inch (S)

0.137

Insert thickness - millimeter (S)

3.47

Package Quantity

5

Profile distance ex - inch (PDX)

0.031

Profile distance ex - millimeter (PDX)

0.8

Profile distance ey - inch (PDY)

0.031

Profile distance ey - millimeter (PDY)

0.8

Thread pitch - inch (TP)

0.039

Thread pitch - millimeter (TP)

1

Thread type (TTP)

external
