Image for Illustration purposes only. Actual product may vary
Pramet TN 22ERN55:T8010 7575317 Threading Insert External Partial Profile - 55° Whitworth Thread
MODEL 7575317
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$37.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
T8010
Coating property (CTP)
1

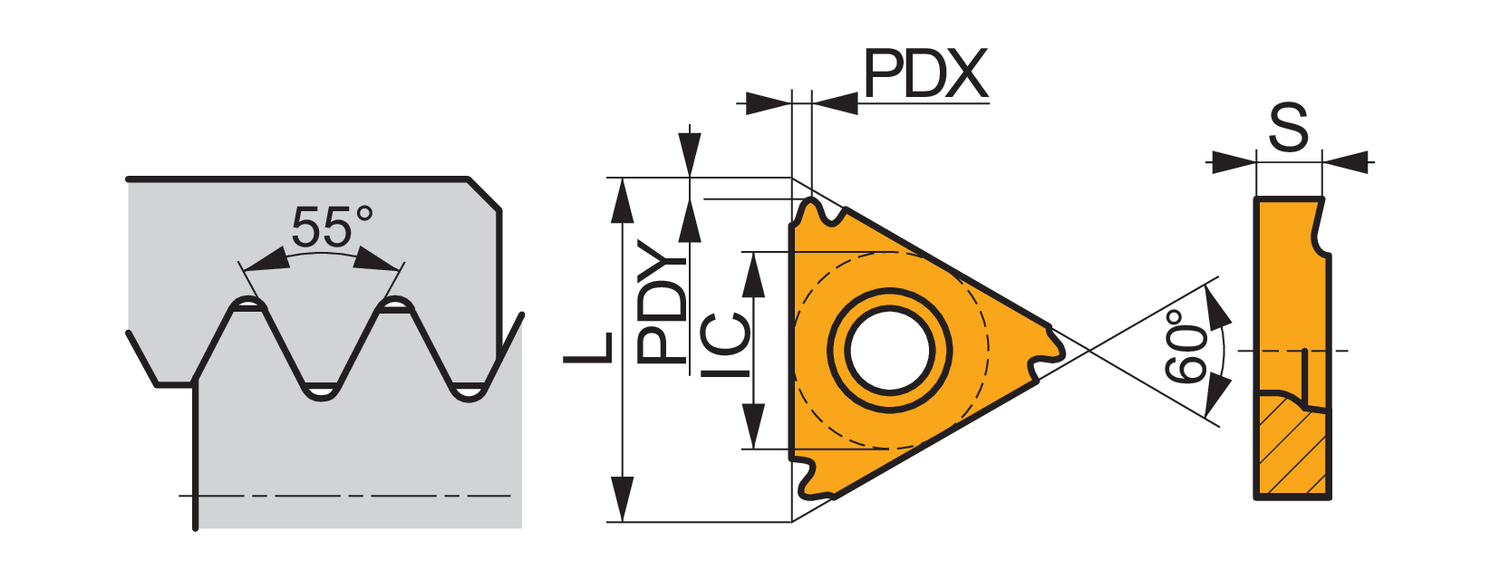

Cutting edge length - inch (L)
0.866
Cutting edge length - millimeter (L)
22
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.185
Insert thickness - millimeter (S)
4.71
Package Quantity
5
Profile distance ex - inch (PDX)
0.098
Profile distance ex - millimeter (PDX)
2.5
Profile distance ey - inch (PDY)
0.071
Profile distance ey - millimeter (PDY)
1.8
Thread pitch maximum - inch (TPX)
0.1969
Thread pitch maximum - millimeter (TPX)
5
Thread pitch minimum - inch (TPN)
0.1378
Thread pitch minimum - millimeter (TPN)
3.5
Thread type (TTP)
external
Threads per inch - maximum
7
Threads per inch - minimum
5
Single-sided threading insert, triangular with an inscribed circle diameter of 12.7mm, for right hand cutting partial profile of British Standard external threads with 7 to 5TPI, T8010 PVD coated extra fine grained WC-Co carbide within ISO-grade ranges P05-P15/M01-M15 and K05-K15 for machining of steel, stainless-steel and cast-iron
