Pramet PPH 3200-CL1:2003 ball nosed copy milling insert, 1.26 in cutting diameter, 0.126 in maximum depth of cut, CL1 chipbreaker, 2003 PVD coated fine grained WC-Co carbide grade for steel, cast iron, and hardened materials. Article 7156087.

Chipbreaker

CL1

Coating

2003

Coating process

PVD

Coating property (CTP)

1

Cooling effect

Slightly negative effect on tool life

Depth of cut maximum - inch (APMX)

0.126

Depth of cut maximum - millimeter (APMX)

3.2

Depth of cut minimum - inch (APMN)

0.004

Depth of cut minimum - millimeter (APMN)

0.1

Feed maximal - millimeter

0.2

Feed minimal - millimeter

0.05

Feed_MAX_IMP_NUM

0.008

Feed_MIN_IMP_NUM

0.002

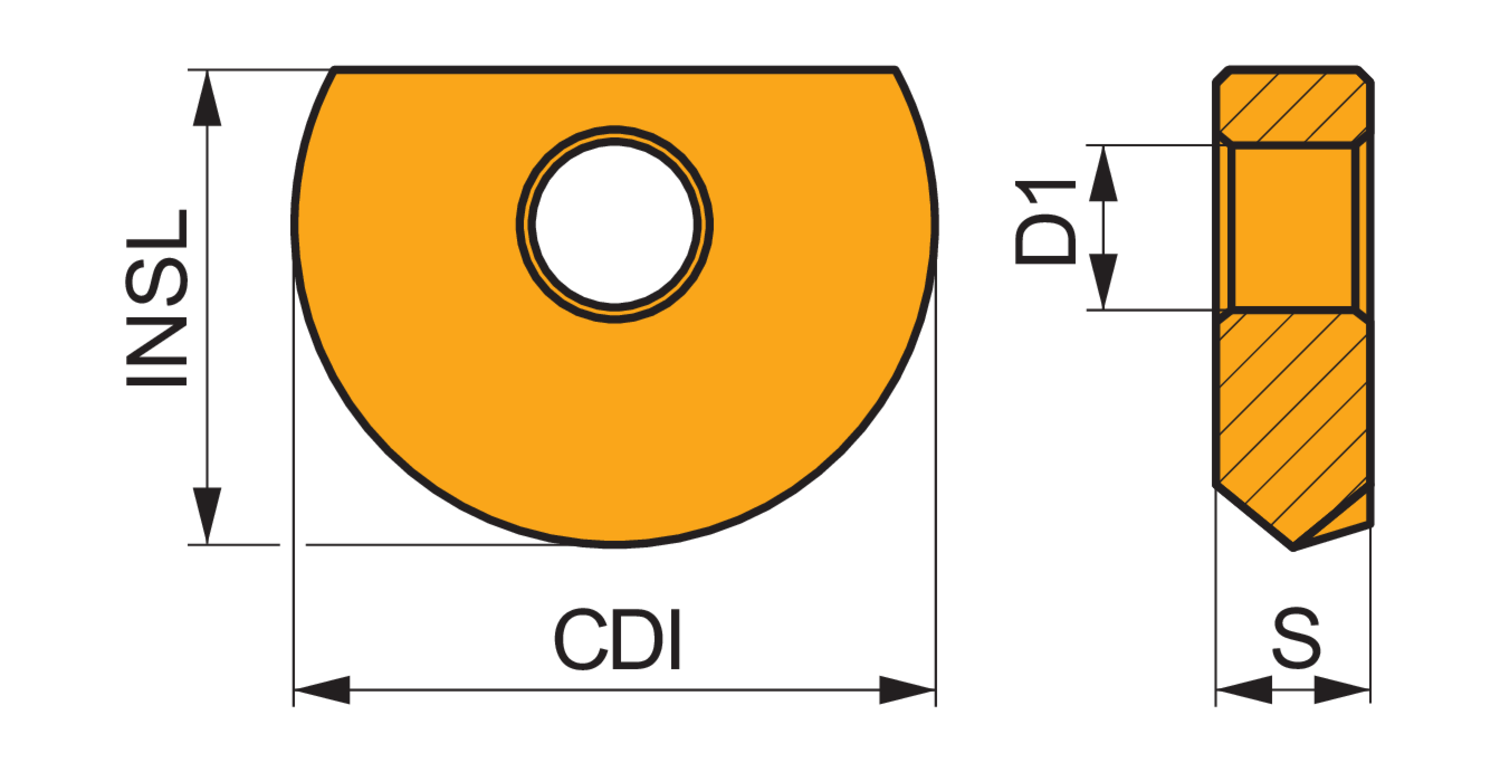

Fixing hole diameter - inch (D1)

0.315

Fixing hole diameter - millimeter (D1)

8

Insert cutting diameter - inch (CDI)

1.26

Insert cutting diameter - millimeter (CDI)

32

Insert length - inch (INSL)

0.925

Insert length - millimeter (INSL)

23.5

Insert shape code (SC)

P - pentagonal

Insert thickness - inch (S)

0.276

Insert thickness - millimeter (S)

7
