Pramet RDHT 0702MO-FA:HF7 6751849 Milling Insert - Copy and Profile
MODEL RDHT 0702MO-FA:HF7
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$11.92 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Orders over $500 qualify for a Free Gift
Typically Ships in: 1 day
Returnable: Yes

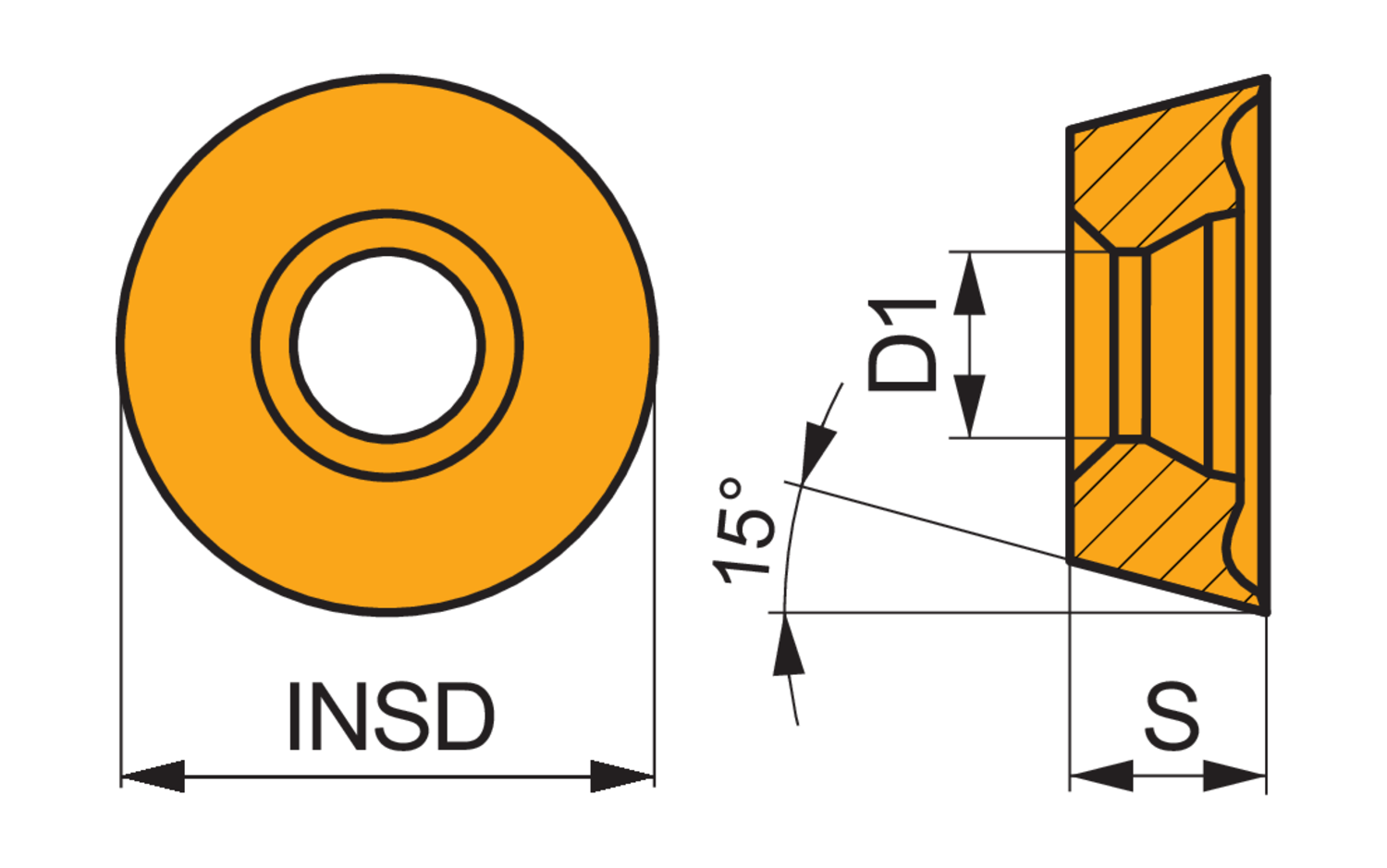

Insert diameter - millimeter (INSD)
7
Fixing hole diameter - inch (D1)
0.11
Chipbreaker
FA
Insert thickness - inch (S)
0.094
Feed maximal - millimeter
0.2
Fixing hole diameter - millimeter (D1)
2.8
Coating
HF7
Depth of cut minimum - inch (APMN)
0.012
Feed_MIN_IMP_NUM
0.004
Insert diameter - inch (INSD)
0.276
Depth of cut maximum - millimeter (APMX)
2
Feed_MAX_IMP_NUM
0.008
Depth of cut maximum - inch (APMX)
0.079
Feed minimal - millimeter
0.1
Depth of cut minimum - millimeter (APMN)
0.3
Insert thickness - millimeter (S)
2.38
Single-sided milling insert RDHT 0702 with chip-breakers, round for a maximum depth of cut of 2.0mm, with an indexing accuracy according to ISO-tolerance class-H and FA geometry, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with copy face mills SRD07
