Pramet 100E3R130M12-ISRD10-CF 7999189 Modular Head For Copy And Profile Milling
MODEL 7999189
$185.08 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

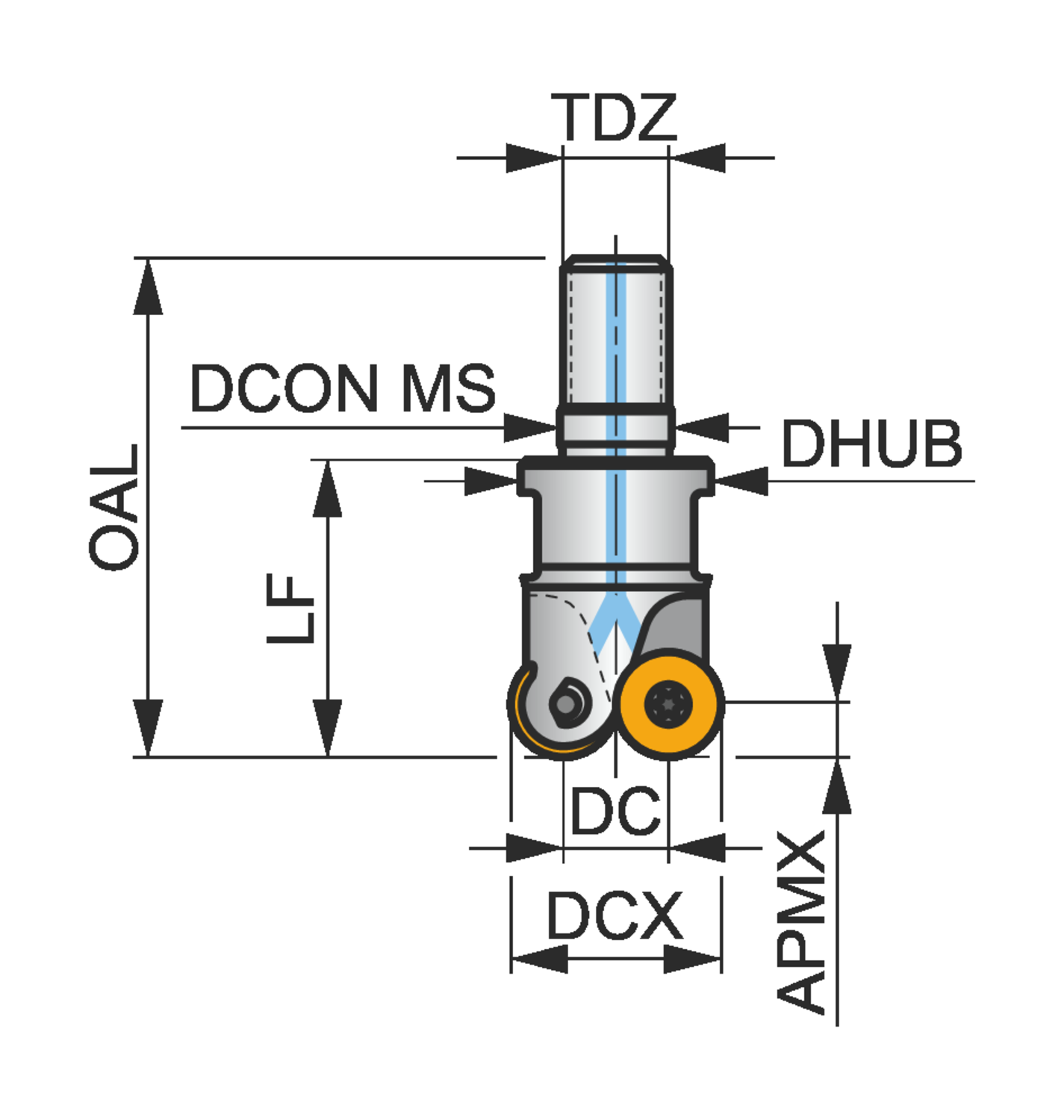

Axial rake angle (GAMP)
0.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.492
Connection diameter - millimeter (DCON MS)
12.5
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.607
Cutting diameter maximum - inch (DCX)
1
Cutting diameter maximum - millimeter (DCX)
25.4
Depth of cut maximum - inch (APMX)
0.098
Functional length - inch (LF)
1.3
Hand (Cutting direction)
Right
Hub diameter - inch (DHUB)
0.827
Overall length - inch (OAL)
2.165
Overall length - millimeter (OAL)
55
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
0.5
Rotational speed maximum (RPMX)
27500
Shank
Threaded coupling
Thread diameter size (TDZ)
M12
Copy face mill with double positive geometry which utilises 3 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 1.000" with M12 threaded shank for standard modular tool-holders, 1.300" functional and 2.165" protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.098"
