Pramet 10K2R030A12-SRC10-A 6756691 End Milling Cutter - Copy And Profile
MODEL 6756691
$154.23 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

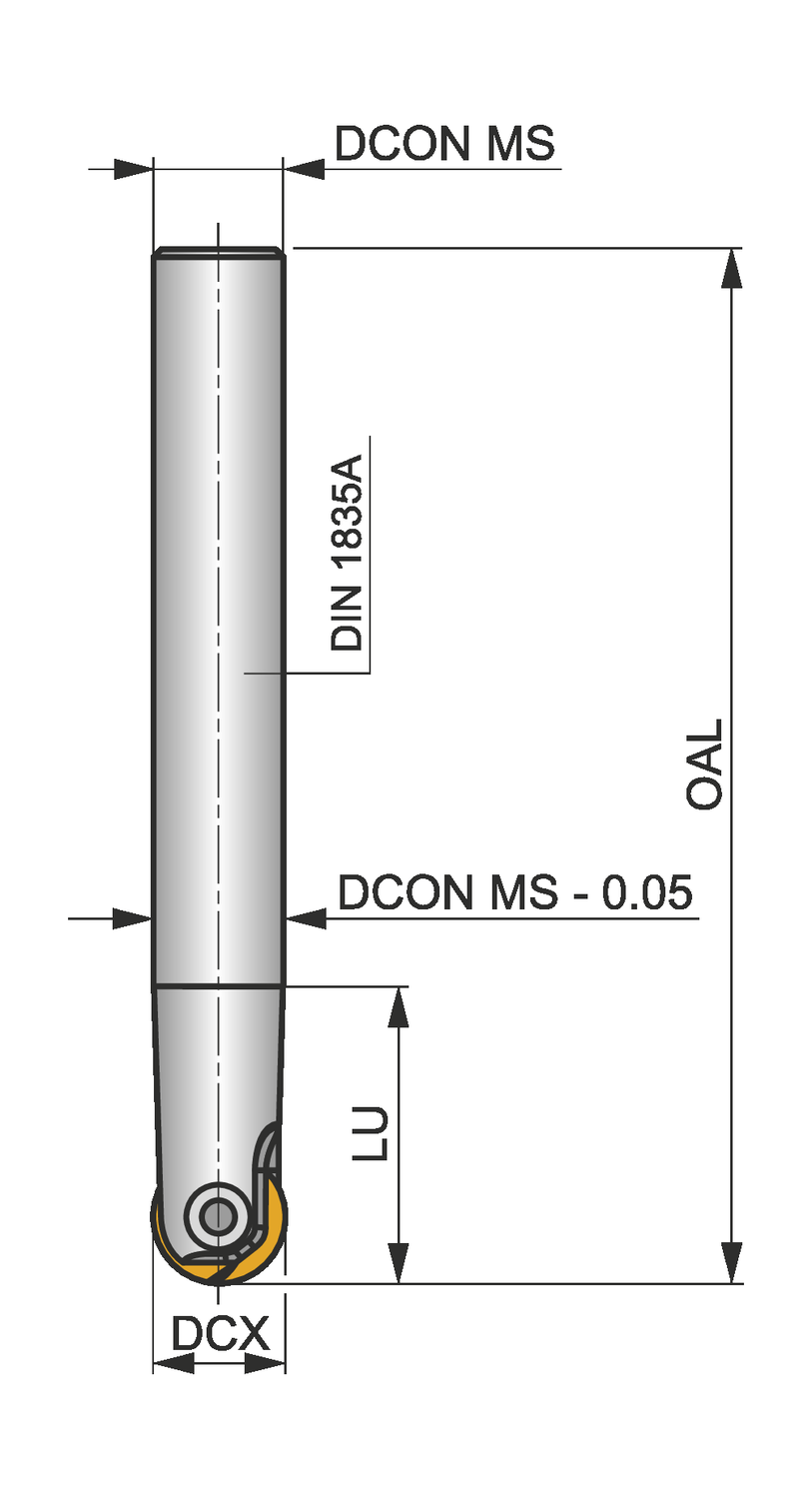

Body diameter - inch (BD)
0.354
Body diameter - millimeter (BD)
9
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.472
Connection diameter - millimeter (DCON MS)
12
Cutting diameter maximum - inch (DCX)
0.394
Cutting diameter maximum - millimeter (DCX)
10
Insert group used in the tool
RC 10, RC 10-F, LC 10-KP, LC 10-KPF
Insert index count (NOI)
1
Overall length - inch (OAL)
5.118
Overall length - millimeter (OAL)
130
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Finishing
Primary use
Roughing
Rotational speed maximum (RPMX)
42000
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
30
Copy end mill which utilises 1 off RC 10, RC 10-F, LC 10-KP or LC 10-KPF single-sided insert, cutting diameter 10mm with 12mm parallel shank according to DIN 1835A, 30mm functional and 130mm overall length for copy milling with a maximum depth of cut of 0.6-3.2mm
