Pramet 20A3R026M10-SAD11E-C modular head for square shoulder milling, 0.787 in cutting diameter, 3 inserts, M10 threaded coupling, right hand, through coolant. Article 6760222.
MODEL 6760222
$310.52 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

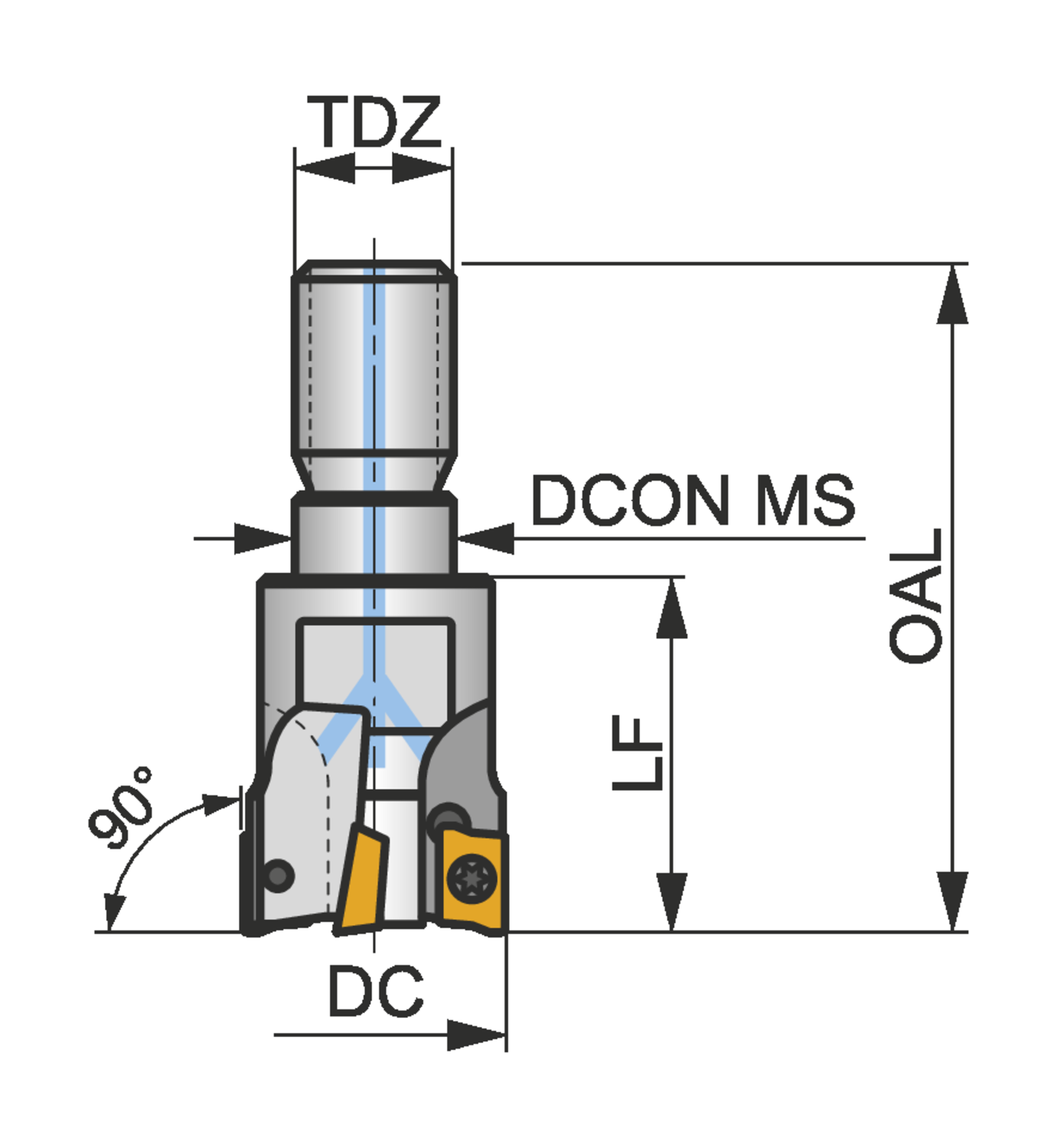

Axial rake angle (GAMP)
5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.413
Connection diameter - millimeter (DCON MS)
10.5
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.787
Cutting diameter - millimeter (DC)
20
Functional length - millimeter (LF)
26
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
1.772
Overall length - millimeter (OAL)
45
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-11.5
Shank
Threaded coupling
Thread diameter size (TDZ)
M10
Shoulder mill with positve/negative geometry which utilises 3 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 20mm with 90° approach angle and M10 threaded shank for standard modular tool-holders, 26mm protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm
