Pramet 16N2R027B16-SSO09-C chamfer mill with double negative geometry, 2 SO..09 single-sided inserts, 0.63 in cutting diameter, 1.134 in maximum cutting diameter, 0.177 in maximum depth of cut, 16 mm Weldon shank DIN 1835B, 4.331 in overall length, through coolant, right hand. Article 6758333.
MODEL 6758333
$294.07 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

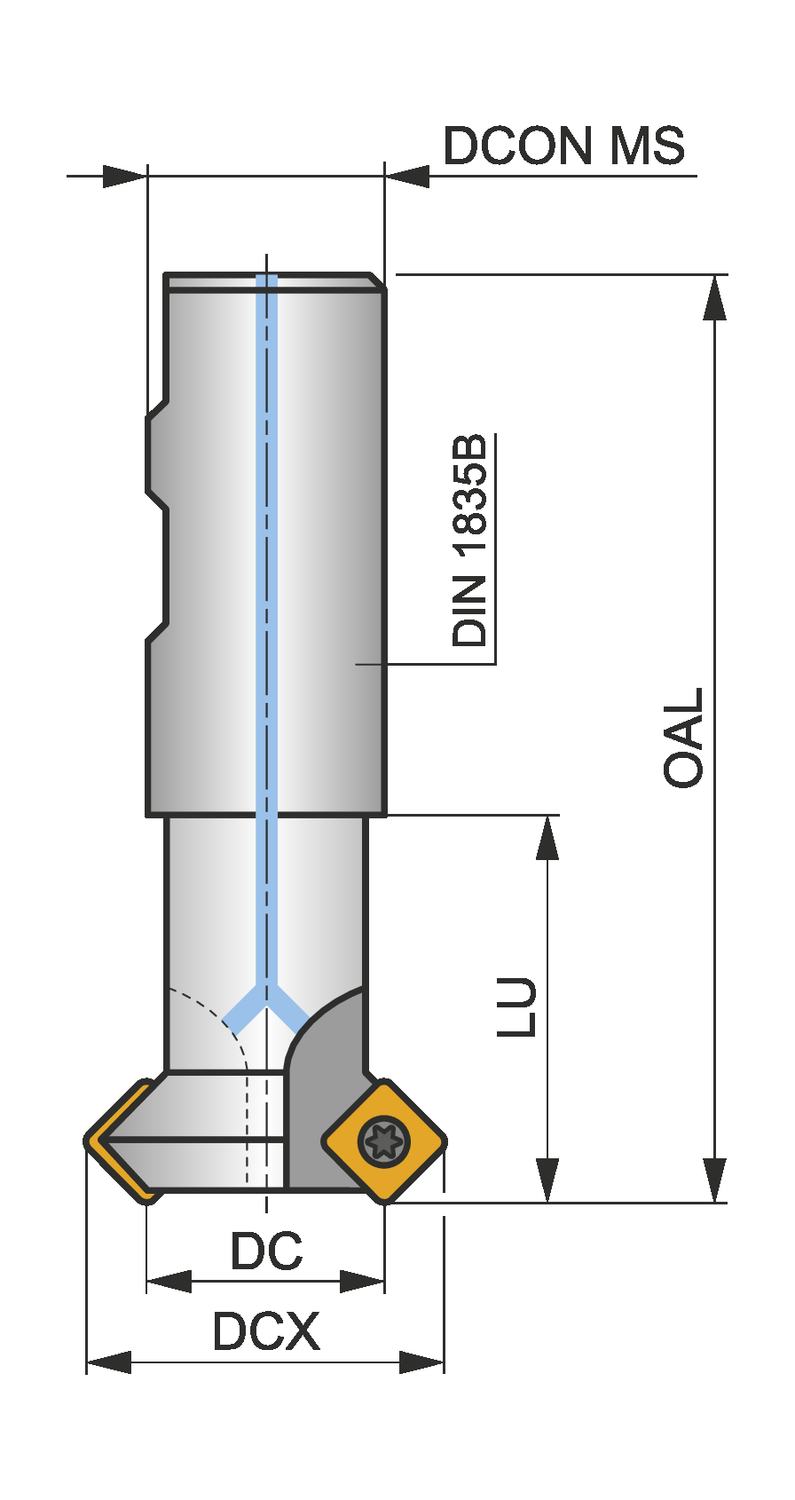

Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.63
Cutting diameter - millimeter (DC)
16
Cutting diameter maximum - inch (DCX)
1.134
Cutting diameter maximum - millimeter (DCX)
28.8
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
4.331
Overall length - millimeter (OAL)
110
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
26600
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
27
Chamfer mill with double negative geometry which utilises 2 off SOMT 09T3.. single-sided inserts, cutting diameter 16 to maximum 28.8mm with 45° approach angle and 16mm Weldon shank according to DIN 1835B, 110mm overall length, through coolant for chamfering with a maximum depth of cut of 4.5mm
