Pramet 075A4R079C075-ISAD07D-C square shoulder milling cutter body, 0.75 in cutting diameter, 0.197 in maximum depth of cut, 4 AD..07 single-sided inserts, 90° approach angle, cylindrical shank DIN 1835A, through coolant, right hand. Article 8017582.
MODEL 8017582
$339.31 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Cooling (CSP)
1
Cutting diameter - inch (DC)
0.75
Cutting diameter - millimeter (DC)
19.1
Hand (Cutting direction)
Right
Overall length - inch (OAL)
4.921
Overall length - millimeter (OAL)
125
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-7
Shank
Cylindrical shank DIN 1835A
Usable Length - inch (LU)
0.787

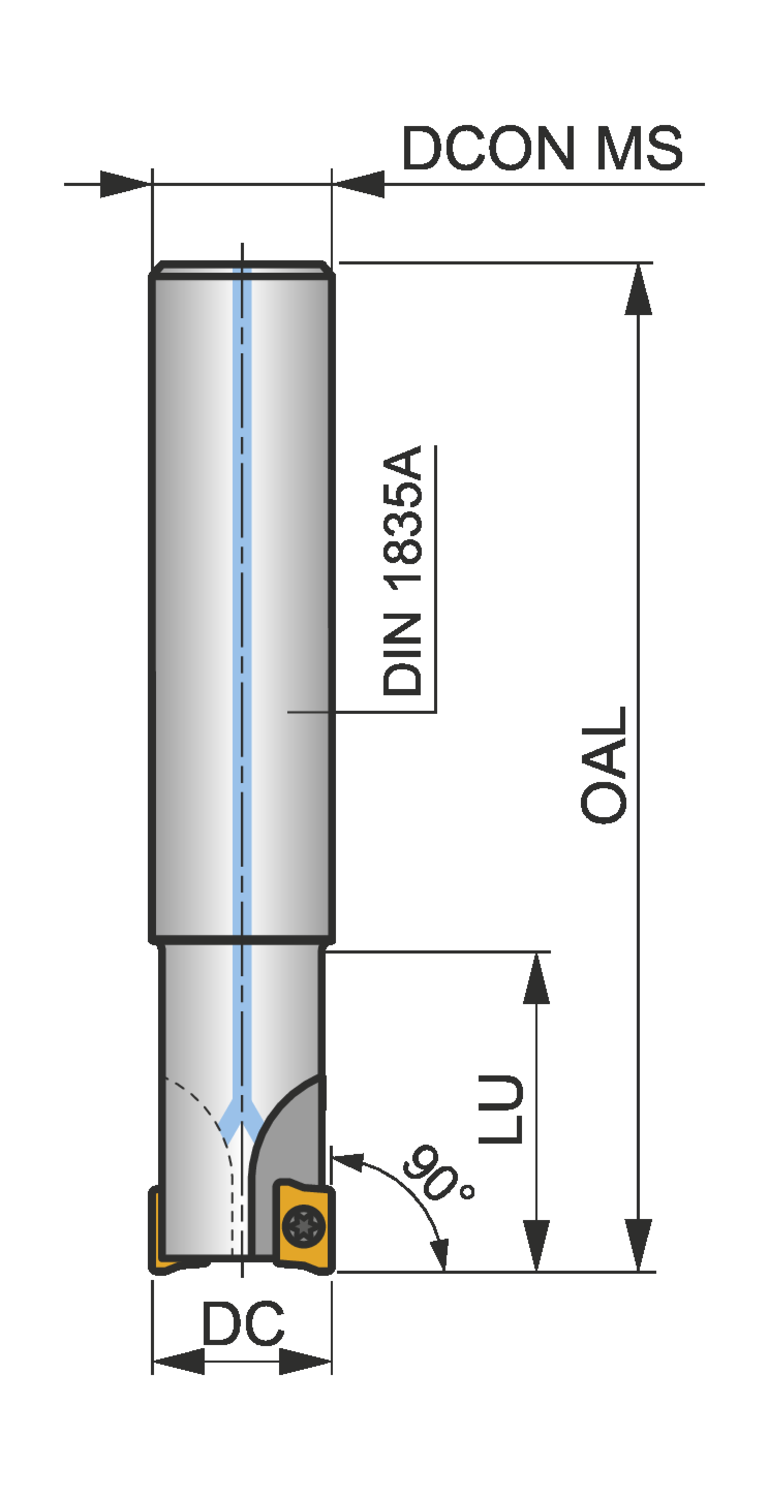

Shoulder mill with positve/negative geometry which utilises 4 of ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 19,05mm 0,750" with 90° approach angle and 19,05mm 0,750" parallel shank according to DIN 1835A, 20mm 0,787" usable and 125mm 4,921" overall length, through coolant for shallow shoulder milling, plunge milling, shallow slot milling, ramping, progressive plunge milling and helical milling
