Pramet 100A07R-S45OD06D 6756818 Shell Milling Cutter - Face
MODEL 6756818
$793.79 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

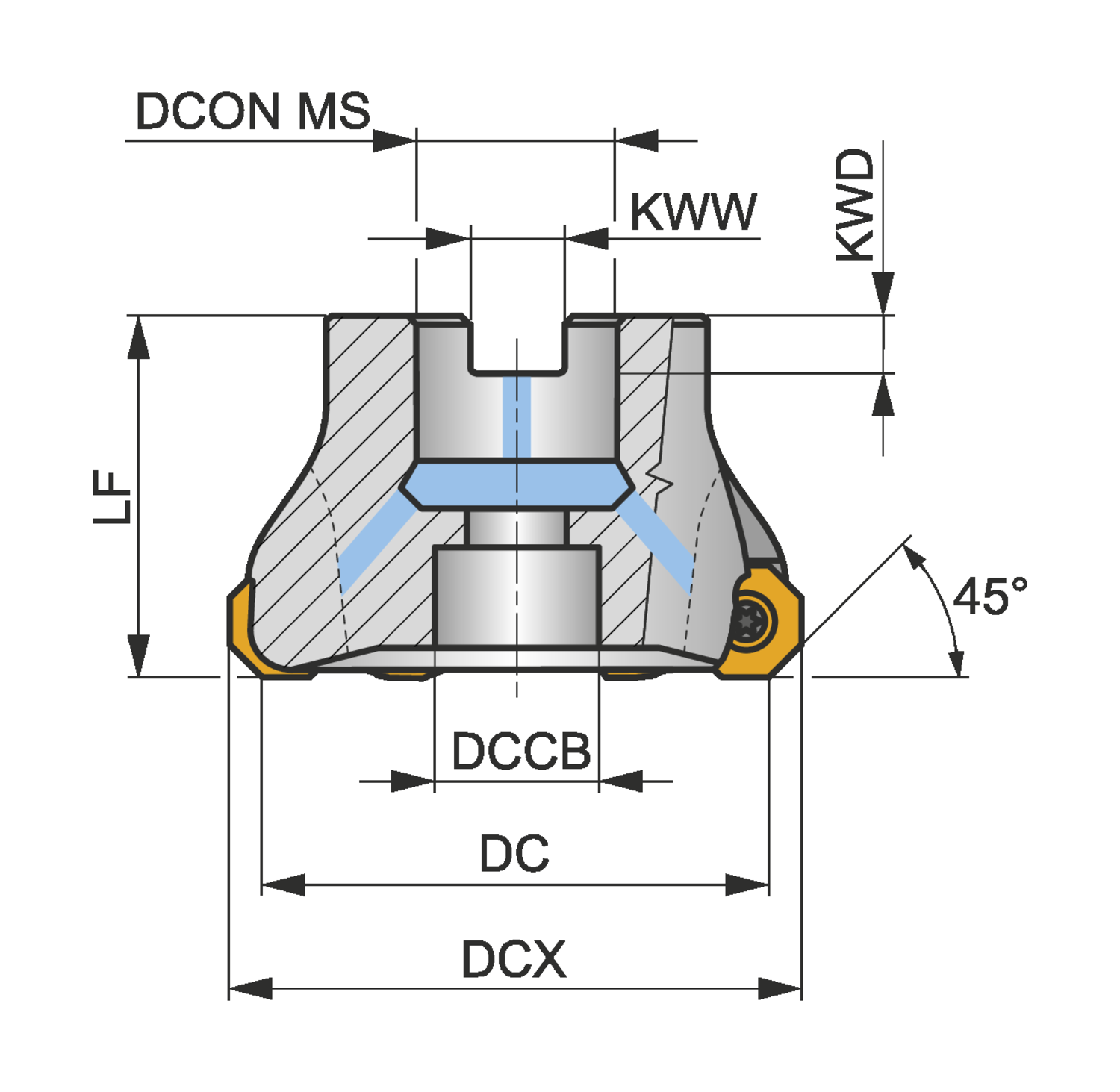

Axial rake angle (GAMP)
5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.063
Counterbore diameter connection bore - millimeter (DCCB)
27
Cutting diameter - inch (DC)
3.937
Cutting diameter - millimeter (DC)
100
Cutting diameter maximum - inch (DCX)
4.311
Cutting diameter maximum - millimeter (DCX)
109.5
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
7
Keyway depth - millimeter (KWD)
8
Keyway width - millimeter (KWW)
14.4
Peripheral effective cutting edge count (ZEFP)
7
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
7000
Shank
Shell mill DIN 8030 A
Face mill with positve/negative geometry which utilises 7 off OD.. 0605ZZ.. or RP.. 1505MO.. single-sided inserts, cutting diameter 100 to maximum 109.5mm with 45° approach angle and 32mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.1 (8.6)mm
