Pramet 125A06R-S57PN13 6761673 Shell Milling Cutter - Heavy Duty
MODEL 6761673
$1,034.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

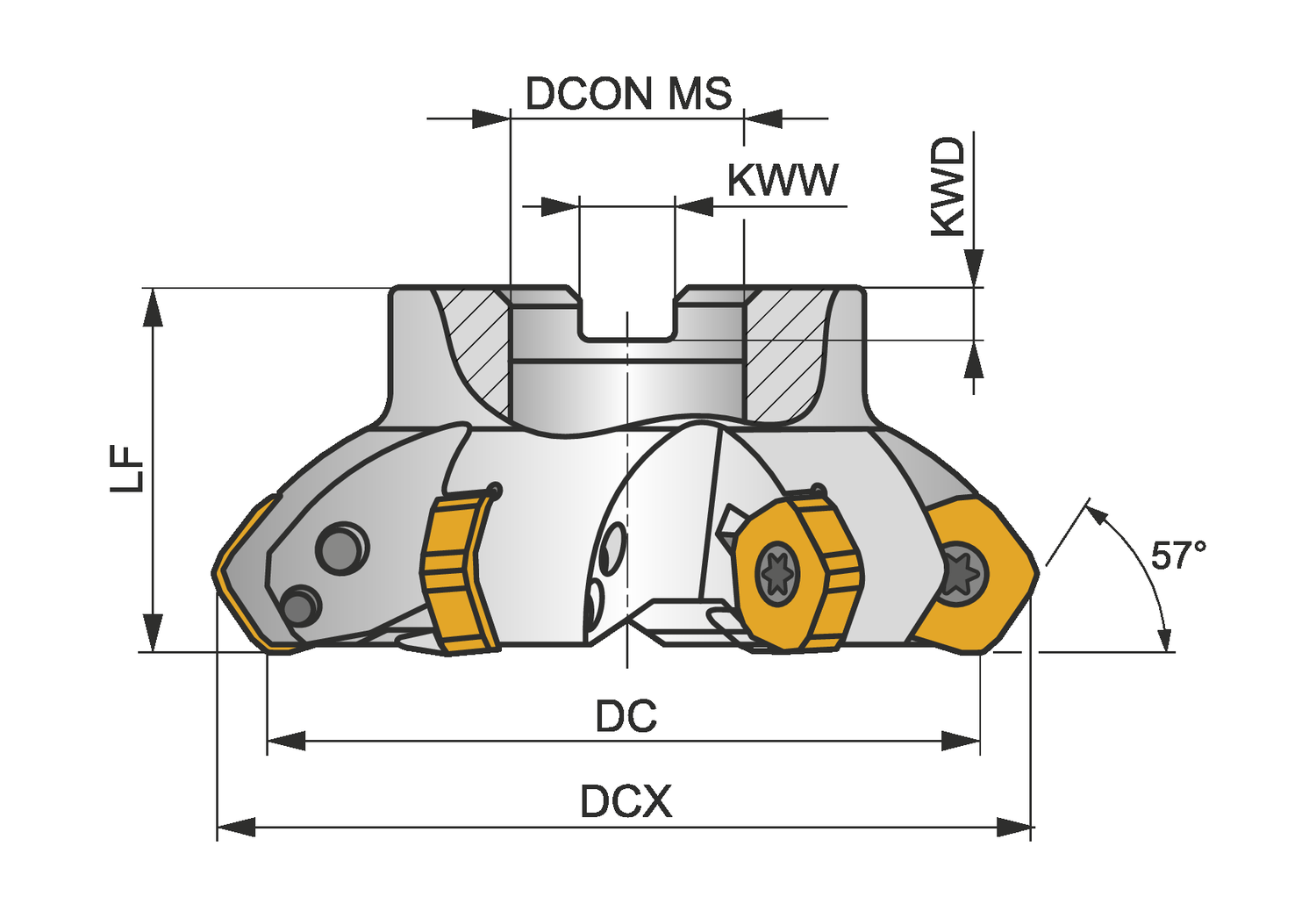

Axial rake angle (GAMP)
-4
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Cutting diameter - inch (DC)
4.921
Cutting diameter - millimeter (DC)
125
Cutting diameter maximum - inch (DCX)
5.543
Cutting diameter maximum - millimeter (DCX)
140.8
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
6
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-7
Rotational speed maximum (RPMX)
3100
Shank
Shell mill DIN 8030 A
Face mill with double negative geometry which utilises 6 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 125 to maximum 140.8mm with 57° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length for face milling with a maximum depth of cut of 10.0mm
