Pramet 125A2R130C125-ISTN16-C 8021685 End Milling Cutter - Square Shoulder
MODEL 8021685
$389.70 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

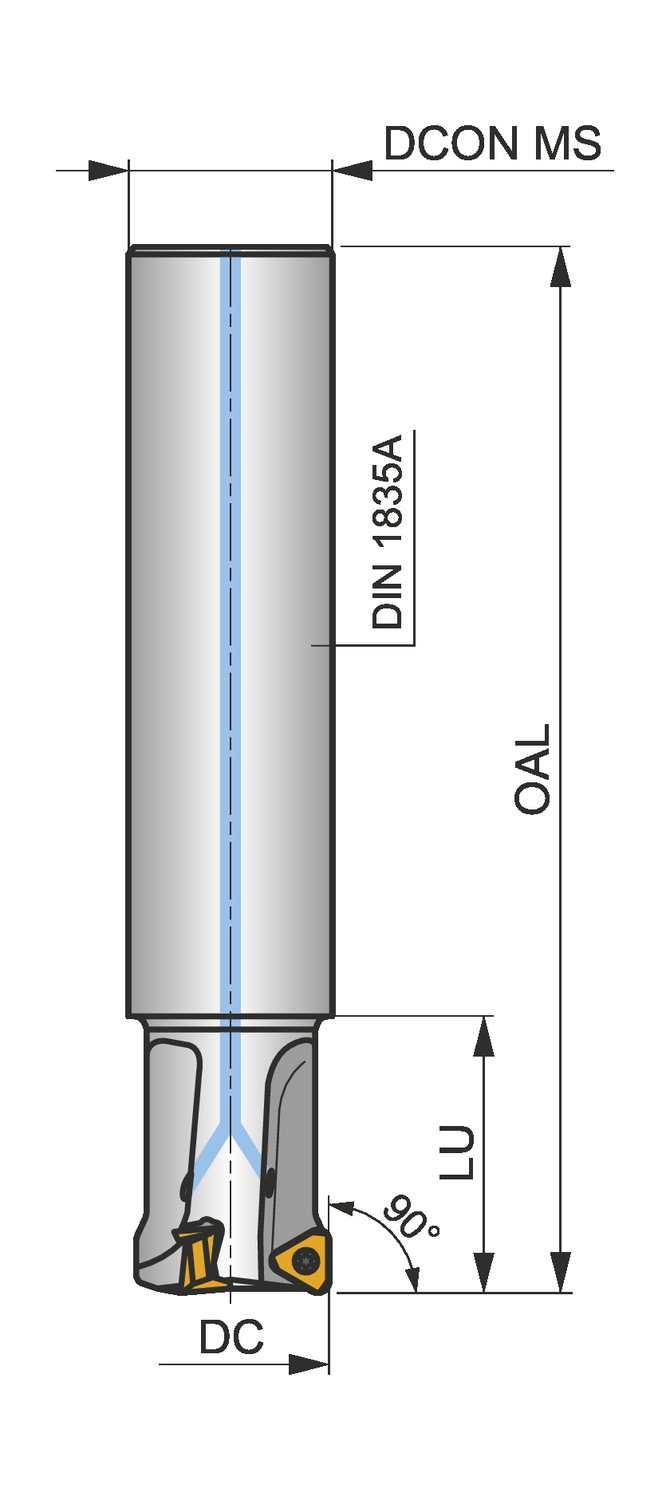

Axial rake angle (GAMP)
-9.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
31.75
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.25
Cutting diameter - millimeter (DC)
31.75
Cutting pitch differential (CPDF)
0
Hand (Cutting direction)
Right
Overall length - inch (OAL)
7.677
Overall length - millimeter (OAL)
195
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-16
Shank
Cylindrical shank DIN 1835A
Usable Length - inch (LU)
1.339
Shoulder face mill with double negative geometry which utilises 2 of TNGX 1606.. double-sided inserts, cutting diameter 1.250" with 90° approach angle and parallel shank according to DIN 1835A, through coolant for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
