Pramet 32A3R042B32-SLN12-C end milling cutter, square shoulder, 1.26 in cutting diameter, 0.354 in maximum depth of cut, 3 inserts, Weldon shank DIN 1835B, right hand, through coolant. Article 6760301.
MODEL 6760301
$411.29 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

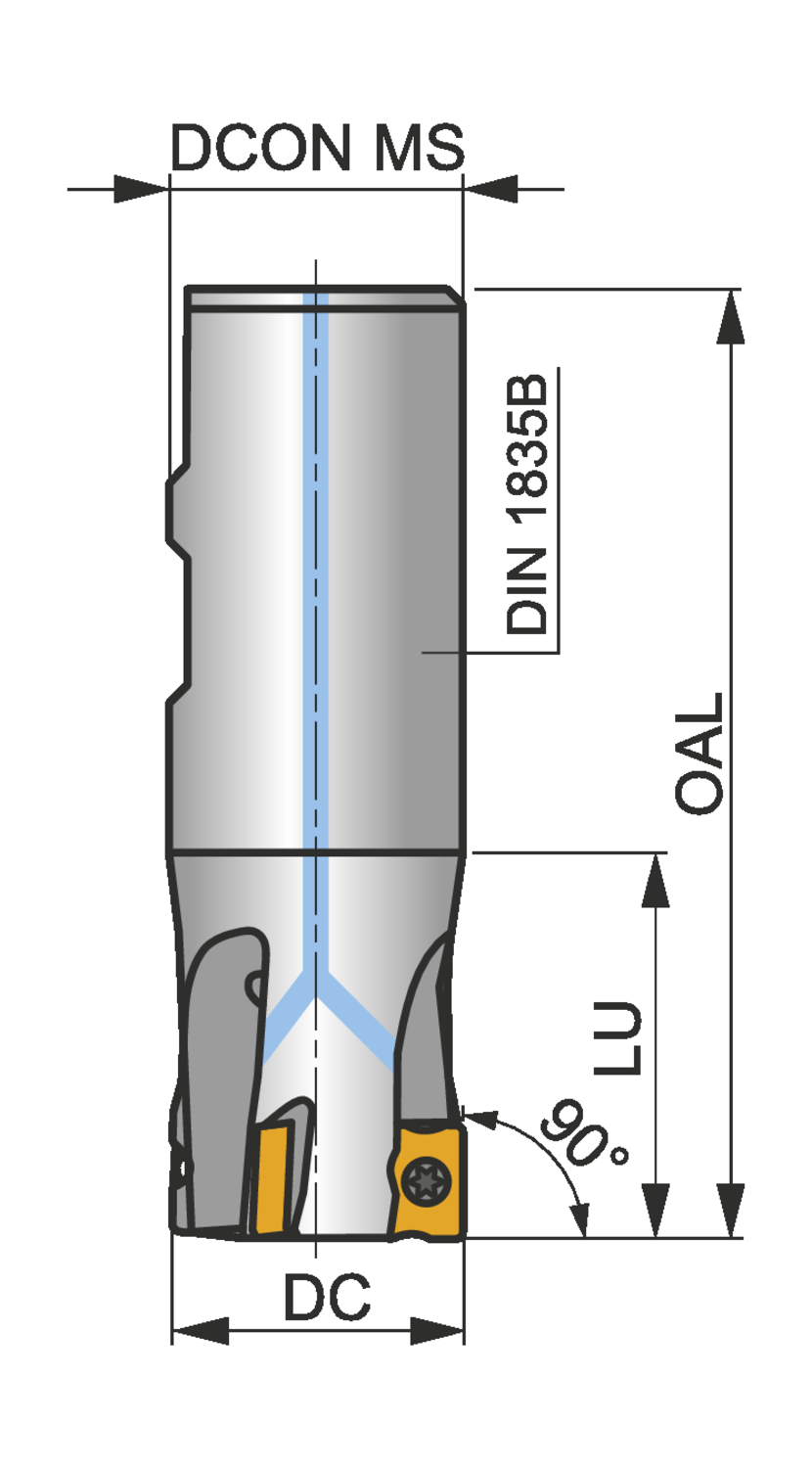

Axial rake angle (GAMP)
-6
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
4.055
Overall length - millimeter (OAL)
103
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-15
Rotational speed maximum (RPMX)
17300
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
42
Shoulder mill with double negative geometry which utilises 3 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm Weldon shank according to DIN 1835B, 42mm functional and 103mm overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0mm
