Pramet 32A8R043M16-SAD07D-C modular head for square shoulder milling — 1.26 in (32 mm) cutting diameter, 0.197 in maximum depth of cut, 8 inserts, M16 threaded coupling, right hand, through coolant, differential pitch. Article 6798645.
MODEL 6798645
$419.51 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

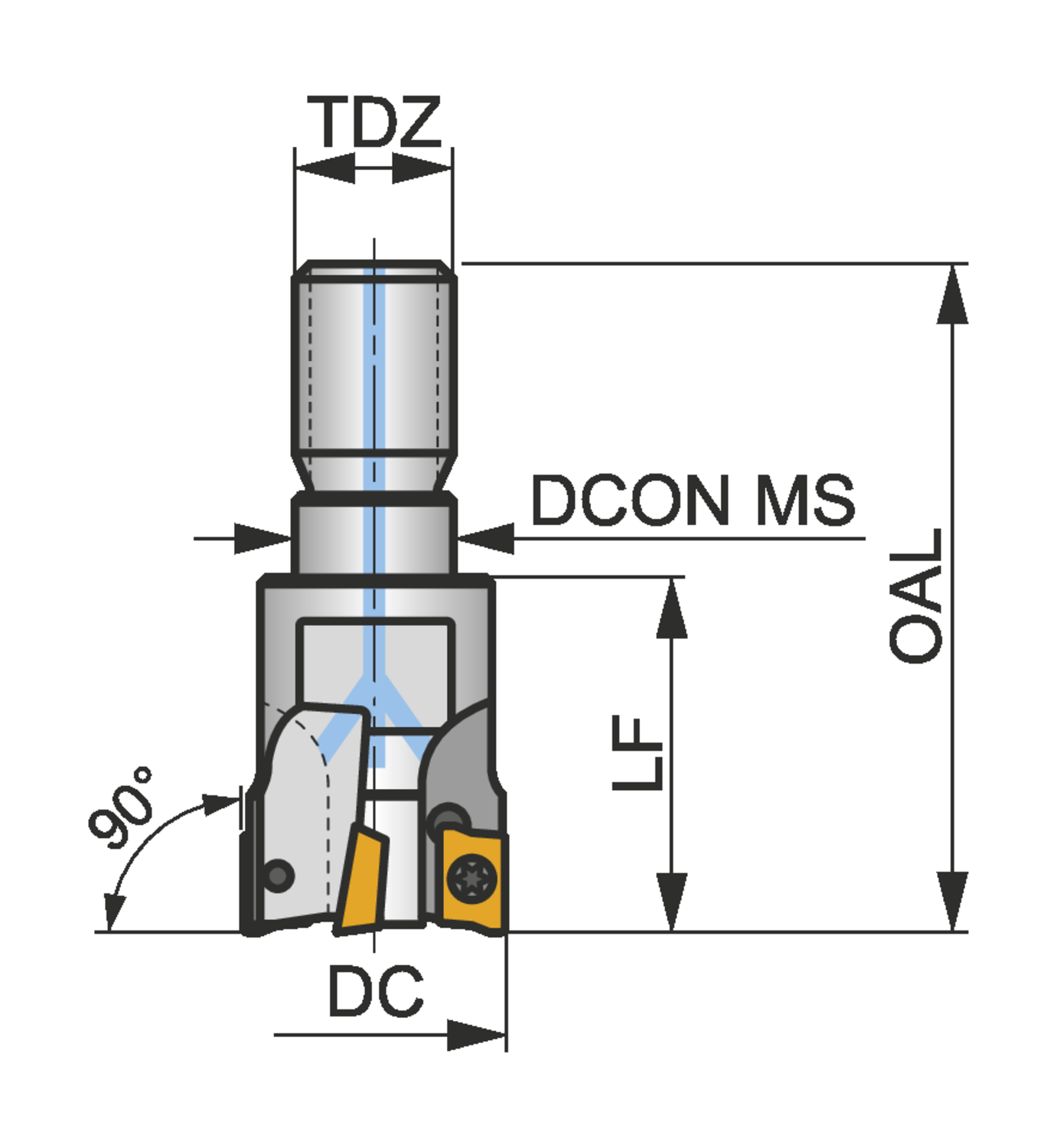

Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.669
Connection diameter - millimeter (DCON MS)
17
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
43
Hand (Cutting direction)
Right
Insert index count (NOI)
8
Overall length - inch (OAL)
2.598
Overall length - millimeter (OAL)
66
Peripheral effective cutting edge count (ZEFP)
8
Radial rake angle (GAMF)
-6
Shank
Threaded coupling
Thread diameter size (TDZ)
M16
Shoulder mill with positve/negative geometry which utilises 8 off ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 32mm with 90° approach angle and M16 threaded shank for standard modular tool-holders, 43mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0mm
