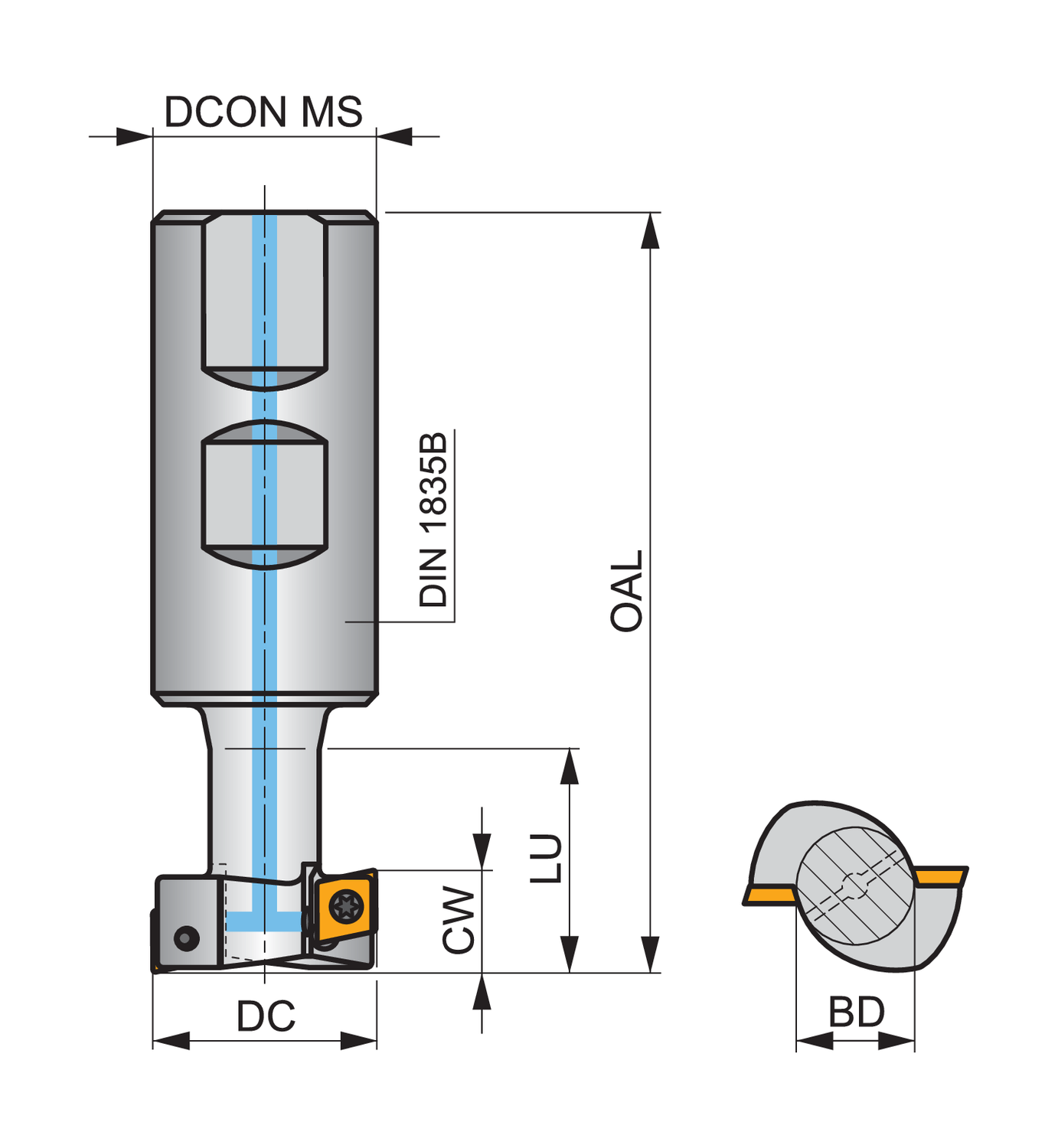

Pramet 40F2R046B32-SCC09-C milling cutter body for T-slot and rear face milling, 1.575 in (40 mm) cutting diameter, 90° approach angle, 4 CC..09.. inserts, 32 mm Weldon shank DIN 1835B, 4.134 in (105 mm) overall length, through coolant, 18 mm cutting width. Article 6758319.

Axial rake angle (GAMP)

2

Body diameter - inch (BD)

0.787

Body diameter - millimeter (BD)

20

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

1.26

Connection diameter - millimeter (DCON MS)

32

Coolant supply property (CSP)

1

Cutting diameter - inch (DC)

1.575

Cutting diameter - millimeter (DC)

40

Cutting width - millimeter (CW)

18

Face effective cutting edge count (ZEFF)

2

Hand (Cutting direction)

Right

Insert index count (NOI)

4

Overall length - inch (OAL)

4.134

Overall length - millimeter (OAL)

105

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

4

Rotational speed maximum (RPMX)

14900

Shank

Weldon shank DIN 1835B

Usable Length - millimeter (LU)

41
