Pramet 40N3R045A32-SOD05-C 7342890 End Milling Cutter - Face
MODEL 7342890
$447.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.283
Cutting diameter - millimeter (DC)
32.6
Cutting diameter maximum - inch (DCX)
1.575
Cutting diameter maximum - millimeter (DCX)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
5.906
Overall length - millimeter (OAL)
150
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-7
Rotational speed maximum (RPMX)
15800
Shank
Cylindrical shank DIN 1835A
Tool cutting edge angle (KAPR)
45
Usable Length - millimeter (LU)
45

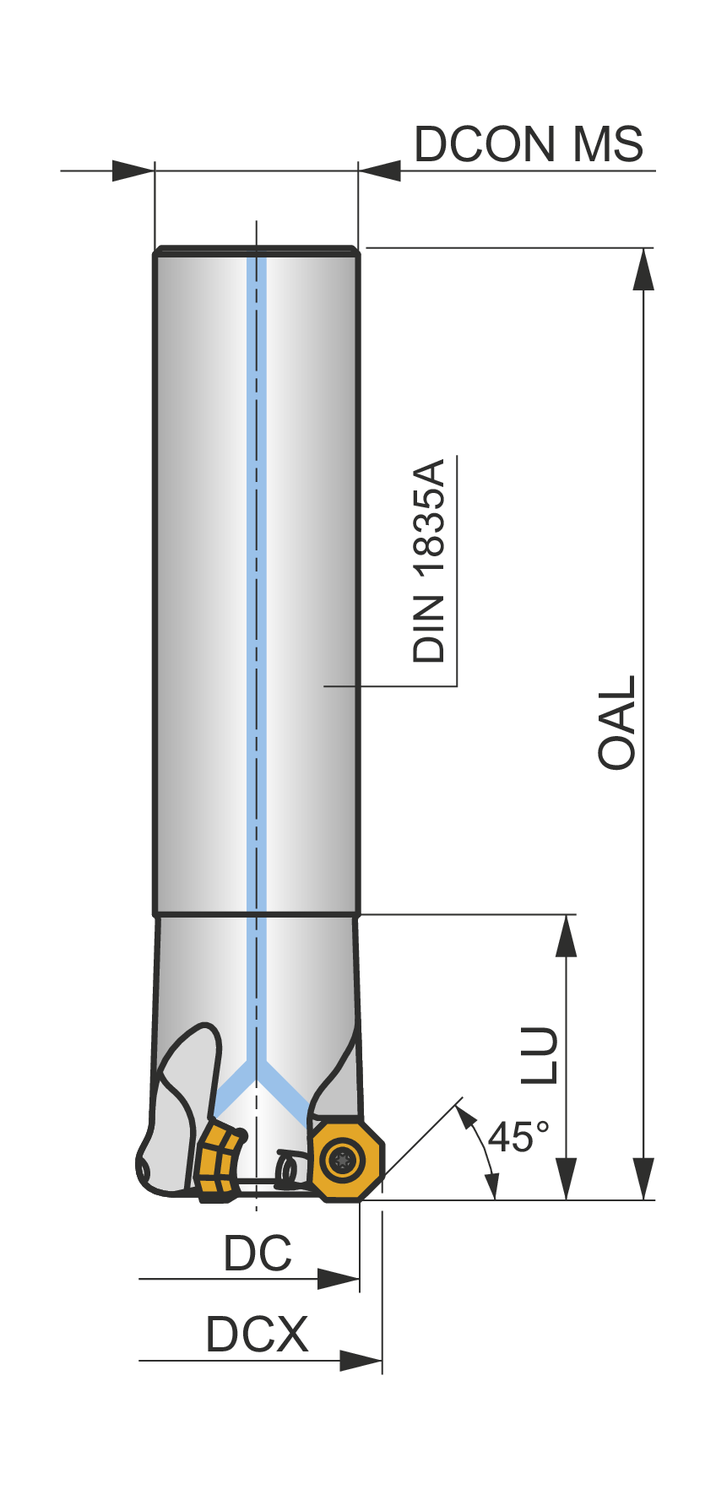

Copy face mill with positve/negative geometry which utilises 3 off OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 32.6mm with 45 / 90° approach angle and 32mm parallel shank according to DIN 1835A, 45mm functional and 150mm overall length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm
