Pramet 63J4R146X50-SSAP74+21 helical end milling cutter, square shoulder, 2.48 in cutting diameter, 3.74 in maximum depth of cut, 22 inserts, 4 flutes, right hand, arbor DIN 2080-1 connection size 50. Article 6757818.
MODEL 6757818
$1,800.42 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

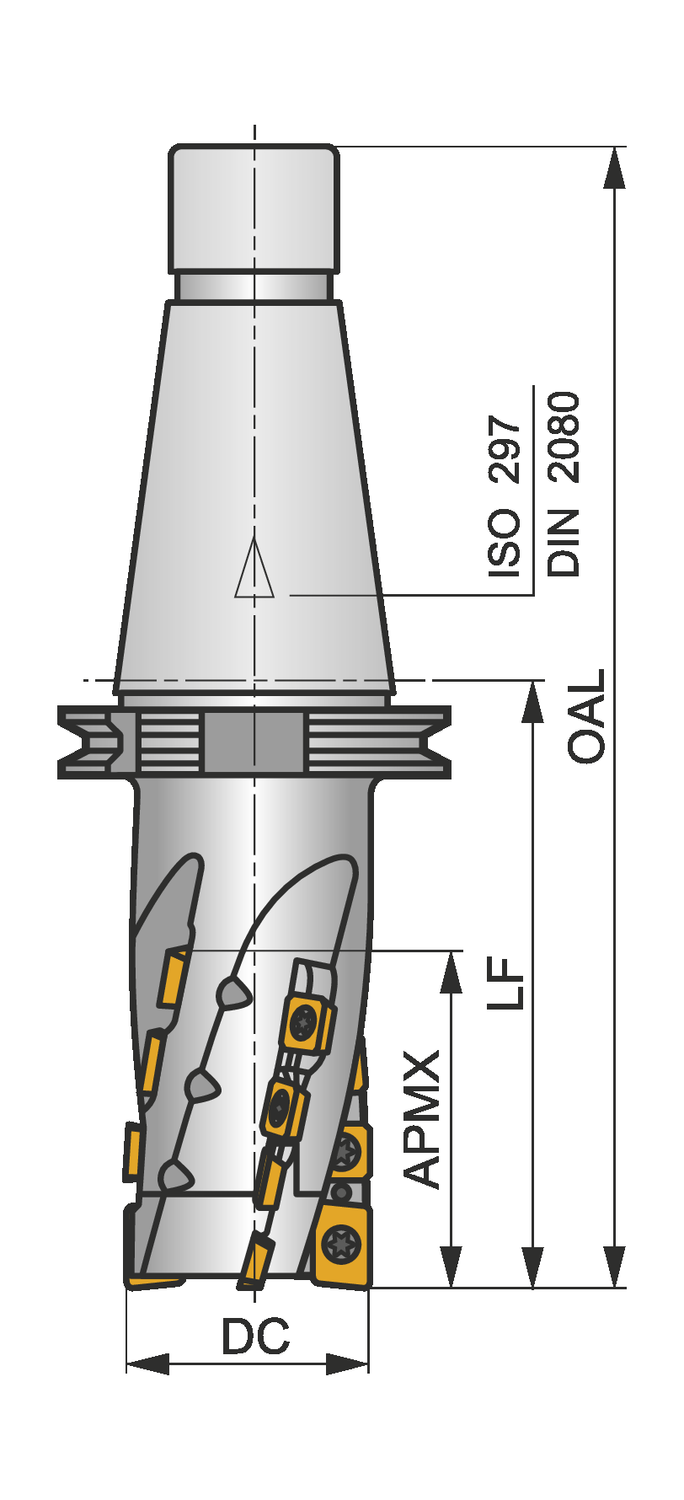

Axial rake angle (GAMP)
7
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
50
Cutting diameter - inch (DC)
2.48
Cutting diameter - millimeter (DC)
63
Depth of cut maximum - millimeter (APMX)
95
Flute count (NOF)
4
Functional length - millimeter (LF)
146
Hand (Cutting direction)
Right
Insert index count (NOI)
22
Overall length - inch (OAL)
10.748
Overall length - millimeter (OAL)
273
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
8500
Shank
Arbor DIN 2080-1
Shoulder mill with extended flute and exchangeable head, with positve/negative geometry which utilises 2 off APE.
1504.. and 20 SPE.
1204.. single-sided inserts, cutting diameter 63mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 95mm functional and 273mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 95mm
