Pramet 80F8N-S90SN11N5 6758321 Disc Milling Cutter - Slotting
MODEL 6758321
$951.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-0.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection (shank) description
Arbor DIN 8030 - disc mill
Connection bore diameter - millimeter (DCB)
27
Cutting depth maximum - millimeter (CDX)
16
Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Cutting width - millimeter (CW)
5
Hand (Cutting direction)
Neutral
Hub diameter - millimeter (DHUB)
42
Insert group used in the tool
SNHQ 1103
Insert index count (NOI)
8
Number of peripheral edges in the tool (ZNP)
8
Peripheral effective cutting edge count (ZEFP)
8
Possible use
Medium machining
Radial rake angle (GAMF)
2.5
Rotational speed maximum (RPMX)
12300
Shank
Shell mill DIN 8030 – disc mill

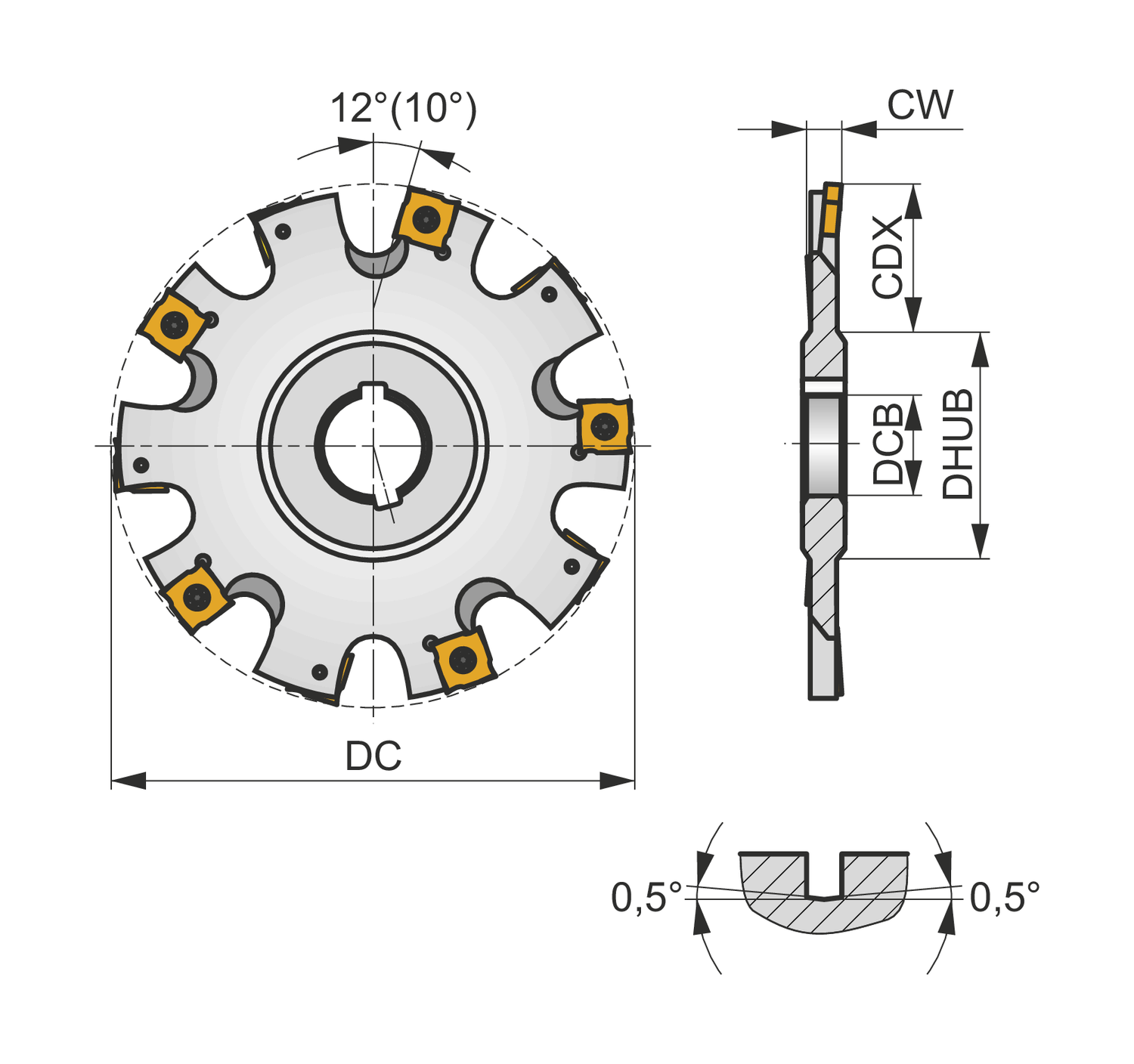

Disc mill with positve/negative geometry which utilises 8 off SNHQ 1103.. double-sided inserts, cutting diameter 80mm with 90° approach angle and 27mm connection bore according to DIN 8030, for deep slot milling with a width of cut of 5mm
