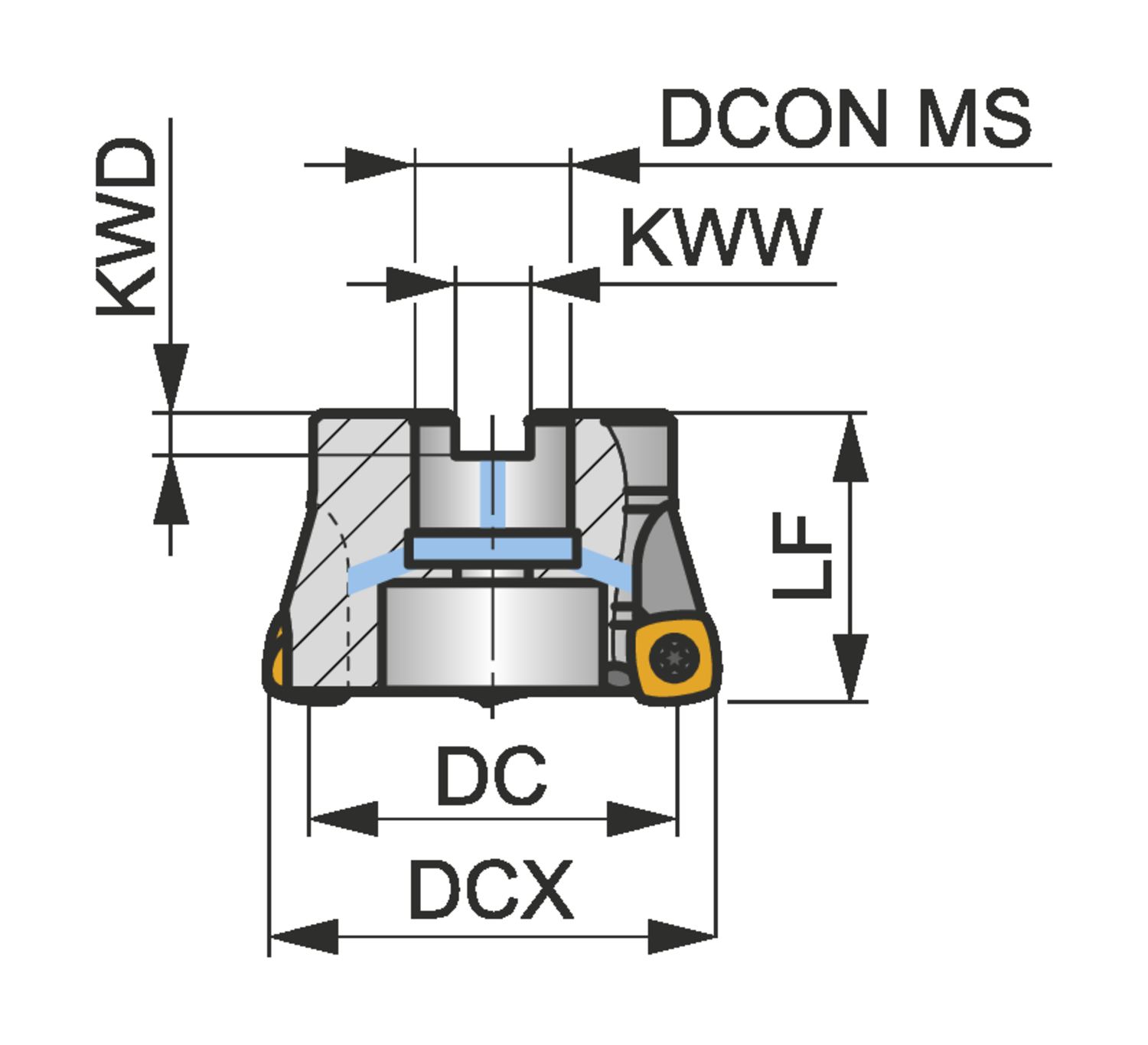

Pramet 63A06R-SMOZD09-C shell milling cutter, high feed, 1.957 in cutting diameter, 6 inserts, 22 mm connection bore, 40 mm functional length, through coolant, differential pitch. Article 7049110.

Axial rake angle (GAMP)

10

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.866

Connection diameter - millimeter (DCON MS)

22

Coolant supply property (CSP)

1

Counterbore diameter connection bore - inch (DCCB)

0.713

Counterbore diameter connection bore - millimeter (DCCB)

18.1

Cutting diameter - inch (DC)

1.957

Cutting diameter - millimeter (DC)

49.7

Cutting diameter maximum - inch (DCX)

2.48

Cutting diameter maximum - millimeter (DCX)

63

Cutting pitch differential (CPDF)

1

Functional length - millimeter (LF)

40

Hand (Cutting direction)

Right

Insert index count (NOI)

6

Keyway depth - millimeter (KWD)

6.4

Keyway width - millimeter (KWW)

10.4

Peripheral effective cutting edge count (ZEFP)

6

Radial rake angle (GAMF)

-6

Rotational speed maximum (RPMX)

14300

Shank

Shell mill DIN 8030 A
