Pramet 63T06R-C90SD12X66 helical shell milling cutter, square shoulder, 2.48 in (63 mm) cutting diameter, 90° approach angle, 36 SD..12.. inserts, 6 flutes, 27 mm connection bore per DIN 8030, 90 mm functional length, 65.7 mm max depth of cut, right hand, top clamping, internal coolant. Article 6761743.

Axial rake angle (GAMP)

8

Clamping Type Code (MTP)

Top clamping

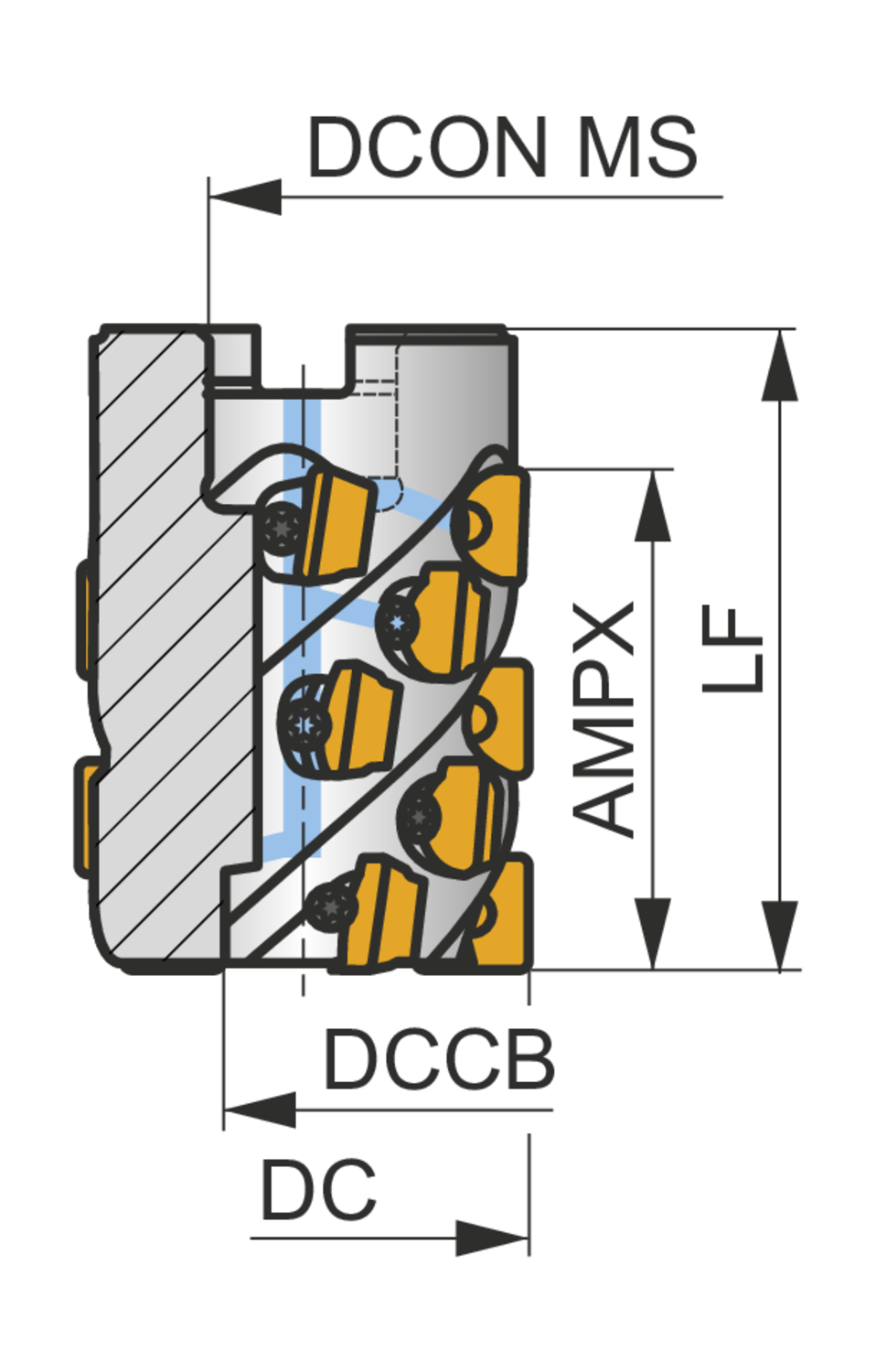

Connection diameter - inch (DCON MS)

1.063

Connection diameter - millimeter (DCON MS)

27

Connection size code machine side (CZC MS)

-

Cooling (CSP)

1

Counterbore diameter connection bore - inch (DCCB)

0.866

Counterbore diameter connection bore - millimeter (DCCB)

22

Cutting diameter - inch (DC)

2.48

Cutting diameter - millimeter (DC)

63

Depth of cut maximum - millimeter (APMX)

65.7

Flute count (NOF)

6

Functional length - millimeter (LF)

90

Hand (Cutting direction)

Right

Insert index count (NOI)

36

Peripheral effective cutting edge count (ZEFP)

36

Radial rake angle (GAMF)

-5

Rotational speed maximum (RPMX)

2500

Shank

Shell mill DIN 8030 – helical mill
