Image for Illustration purposes only. Actual product may vary
Dormer A2061.0X3.15 7191807 118° Center Drill - 60D 1.00 mm x 3.15 mm
MODEL 7191807
$10.88 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplication Material
P - Steel and cast steel
ApplicationAngleIcon_DICT_SEL
Center drilling 60°
Basic Standard
DIN 333A
Coating
Bright

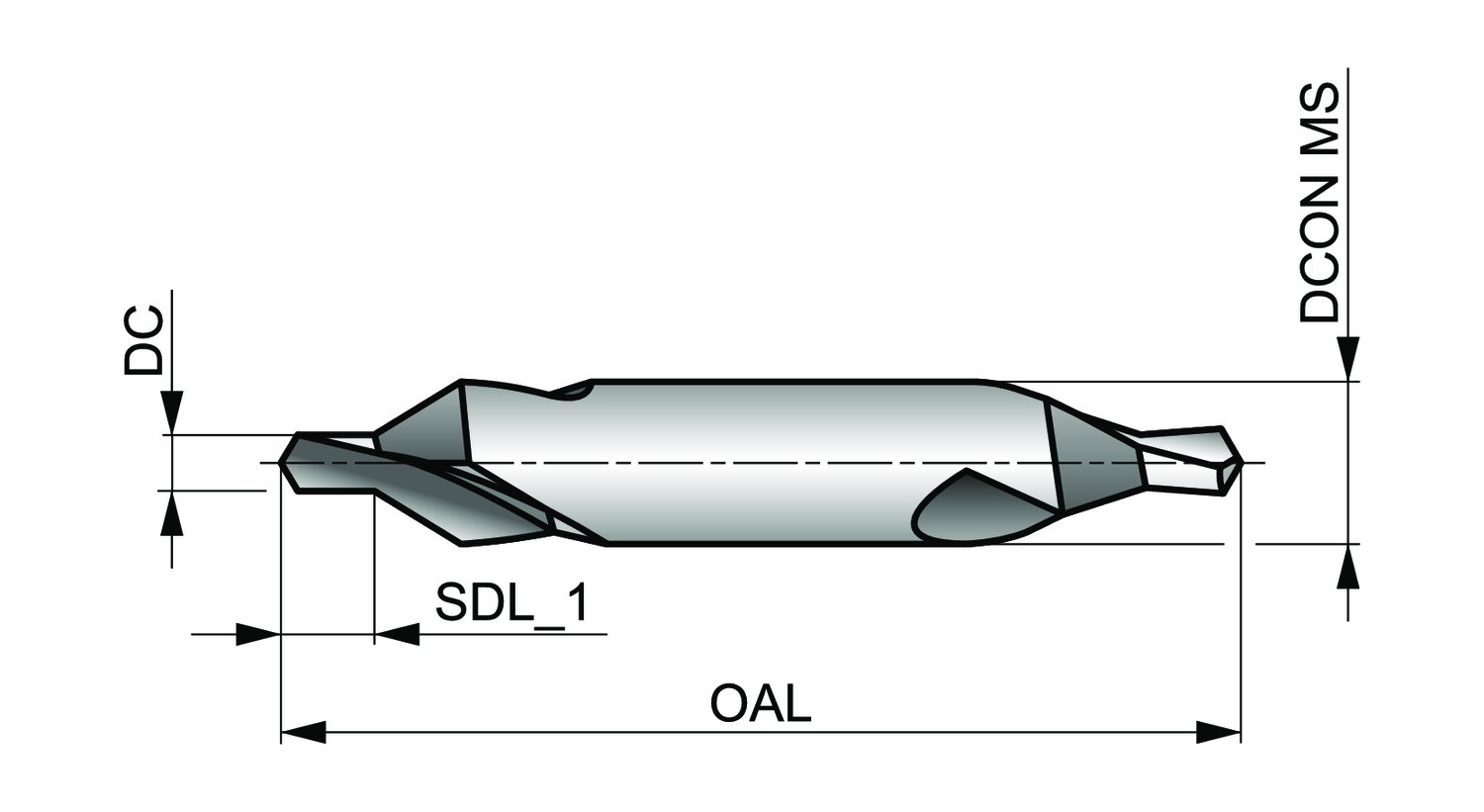

Connection diameter - inch (DCON MS)
0.124
Connection diameter - millimeter (DCON MS)
3.15
Cutting diameter - inch (DC)
0.0394
Cutting diameter - millimeter (DC)
1
EDP number
47191807
Hand (Cutting direction)
Right
Material
HSS-E
Material application
K - Cast iron, P - Steel and cast steel
MID number
7191807
Ordering code ANSI
A2061.0X3.15
Overall length - inch (OAL)
1.2205
Overall length - millimeter (OAL)
31
Point Angle (SIG)
118
Shank
Cylindrical shank
Step included angle (STA)
60
Surface treatement
Original surface
Usable length (ULDR)
1
Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 1.00mm drill diameter, a body diameter of 3.15mm and an overall length of 31mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron.
