Dormer A9208.6 5971796 8.6mm 130° PFX stub drill, Cobalt High Speed Steel (HSS-E), Quick Spiral flute geometry, DIN/ANSI standard. 40mm flute length, h8 cutting diameter tolerance, 8.6mm shank. Suitable for stainless steel, non-ferrous metals, steel, cast steel, and high-temperature alloys.
MODEL 5971796
$30.36 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 130°
Basic Standard
DIN/ANSI
Coating
Bright

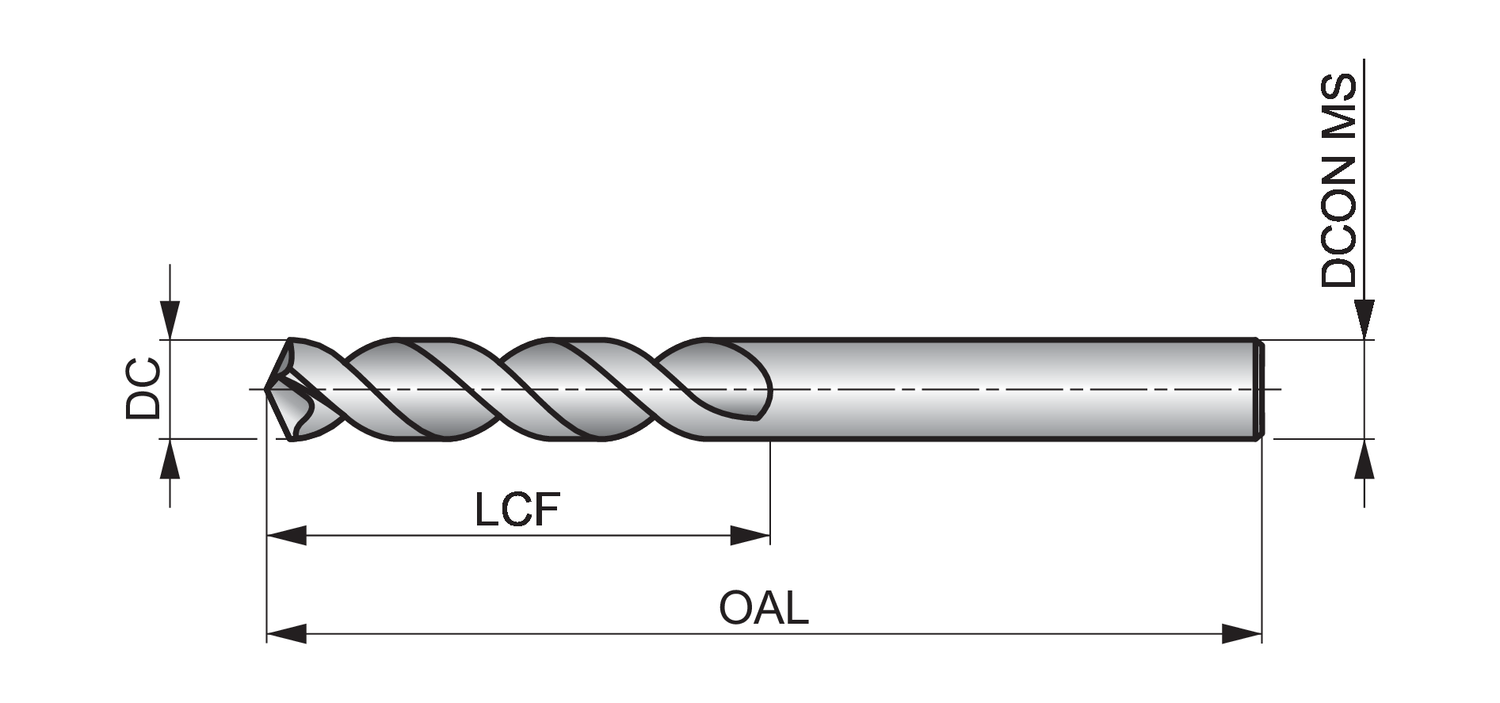

Connection diameter - millimeter (DCON MS)
8.6
Cutting diameter - inch (DC)
0.3386
Cutting diameter - millimeter (DC)
8.6
Cutting diameter tolerance class (TCDC)
h8
EDP number
51665
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
1.5748
Length chip flute - millimeter (LCF)
40
Material
HSS-E
Material application
M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5971796
Ordering code ANSI
A9208.6
Overall length - inch (OAL)
3.3071
Overall length - millimeter (OAL)
84
Point Angle (SIG)
130
Shank
Cylindrical shank
Spiral form
Quick Spiral
Usable length (ULDR)
3
The A920 short drill from Dormer is available in an extensive range of fractional and metric diameters.
Part of Dormer’s PFX range of drills, the A920 has a parabolic flute design which means deeper holes can be drilled in a single pass.
The tool is made from High Speed cobalt and can be used to drill a number of different materials including aluminium, steels and stainless steels, whilst the bright finish means workpiece material will not stick to the cutting edge of the tool.
The A920 has a 130 degree point angle which helps to self-center the tool on the hole and means less force is needed to drill into the workpiece.
The A920 PFX drill is a high performance tool and produces high quality and accurate holes (to H10 hole tolerance) even at high speeds and feeds
