Image for Illustration purposes only. Actual product may vary

Dormer R2001.0X3.15 7191824 centre drill with 1mm cutting diameter, 3.15mm connection diameter, 118° point angle, and 60° step included angle. Solid carbide construction with bright finish, cylindrical shank, right-hand cutting direction, and 31mm overall length. Conforms to DIN 333A. Suitable for K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel.

Name: Dormer R2001.0X3.15 7191824 centre drill with 1mm cutting diameter, 3.15mm connection diameter, 118° point angle, and 60° step included angle. Solid c
Brand: Dormer Pramet
Price: 113.1 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 7191824

BRAND

Dormer Pramet

SKU

6074382

WEIGHT

0.011 lb

UOM

each

$113.10 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Application Material

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel

ApplicationAngleIcon_DICT_SEL

Center drilling 60°

Basic Standard

DIN 333A

Coating

Bright

Connection diameter - inch (DCON MS)

0.124

Connection diameter - millimeter (DCON MS)

3.15

Cutting diameter - inch (DC)

0.0394

Cutting diameter - millimeter (DC)

EDP number

47191824

Hand (Cutting direction)

Right

Material

Carbide

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel

MID number

7191824

Ordering code ANSI

R2001.0X3.15

Overall length - inch (OAL)

1.2205

Overall length - millimeter (OAL)

Point Angle (SIG)

118

Shank

Cylindrical shank

Step included angle (STA)

Surface treatement

Original surface

Usable length (ULDR)

R200 solid carbide centre drills have a 180 degree pilot and 60 degree cone and are recommended for creating center holes in shafts for secure holding.

Suitable for use with all CNC machines, the drills are very versatile and are able to drill many materials including steels, stainless steels and aluminium, being manufactured from premium carbide.

The tools come with a bright finish to ensure clean, accurate results by stopping workpiece material from sticking to the cutting edges of the tool.

For further improvements in productivity and increased economy, R200 center drills are double-ended so twice the productivity in a single tool

When will I be charged for my order? Ordering Do you provide credit terms? Ordering Can I get a discounted price? I am a reseller / government entity. Ordering What is the return/warranty policy? Ordering Can it be shipped today? Ordering Does “Usually ships in 24 hours” mean it’s in stock? Ordering Read full FAQ All FAQs

5.0 out of 5 · 3 reviews

End mill dormer hss

Verified · SKU 6077311

Excelente herramienta de mecanizado , buena calidad para corte de acero inoxidables y al carbono Read more

Excelente tiempo de entrega

Verified · SKU 6080992

Rapido tiempo de entrega Read more

Herramientas dormer

Verified · SKU 6075840

EXCELENTE PROVEEDOR ME GUSTA SU ATENCION Y PRESENTAN EXCELENTES PRECIOS Read more

Catalog PDF

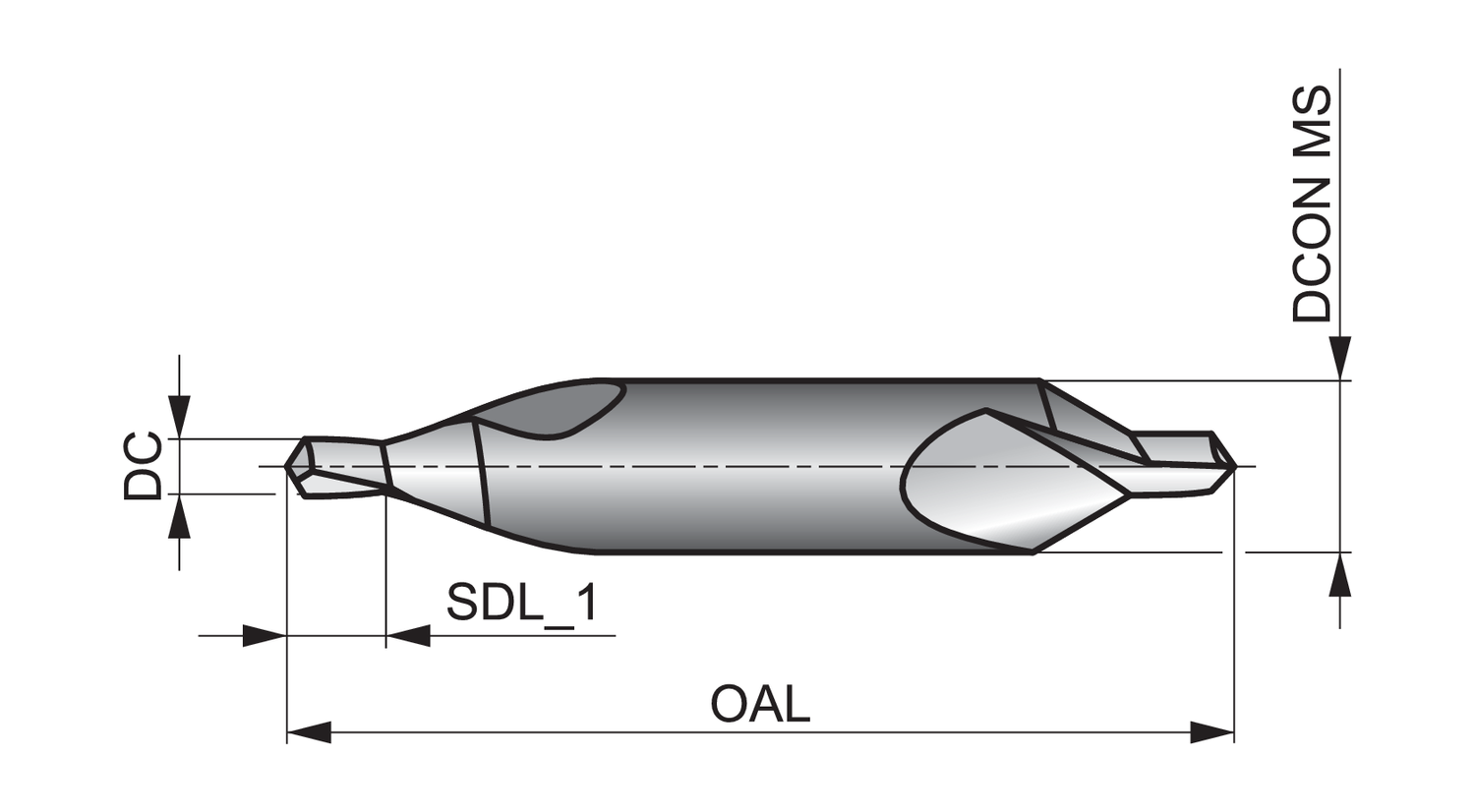

Line Drawing PNG
