Dormer C12220.0 5984257 slot drill, 20.00mm cutting diameter, 2-flute, Cobalt High Speed Steel (HSS-E), 30° helix angle, 12° radial rake, 70mm max depth of cut, 20mm shank. For non-ferrous metals, steel and cast steel. DORMER standard.
MODEL 5984257
$118.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

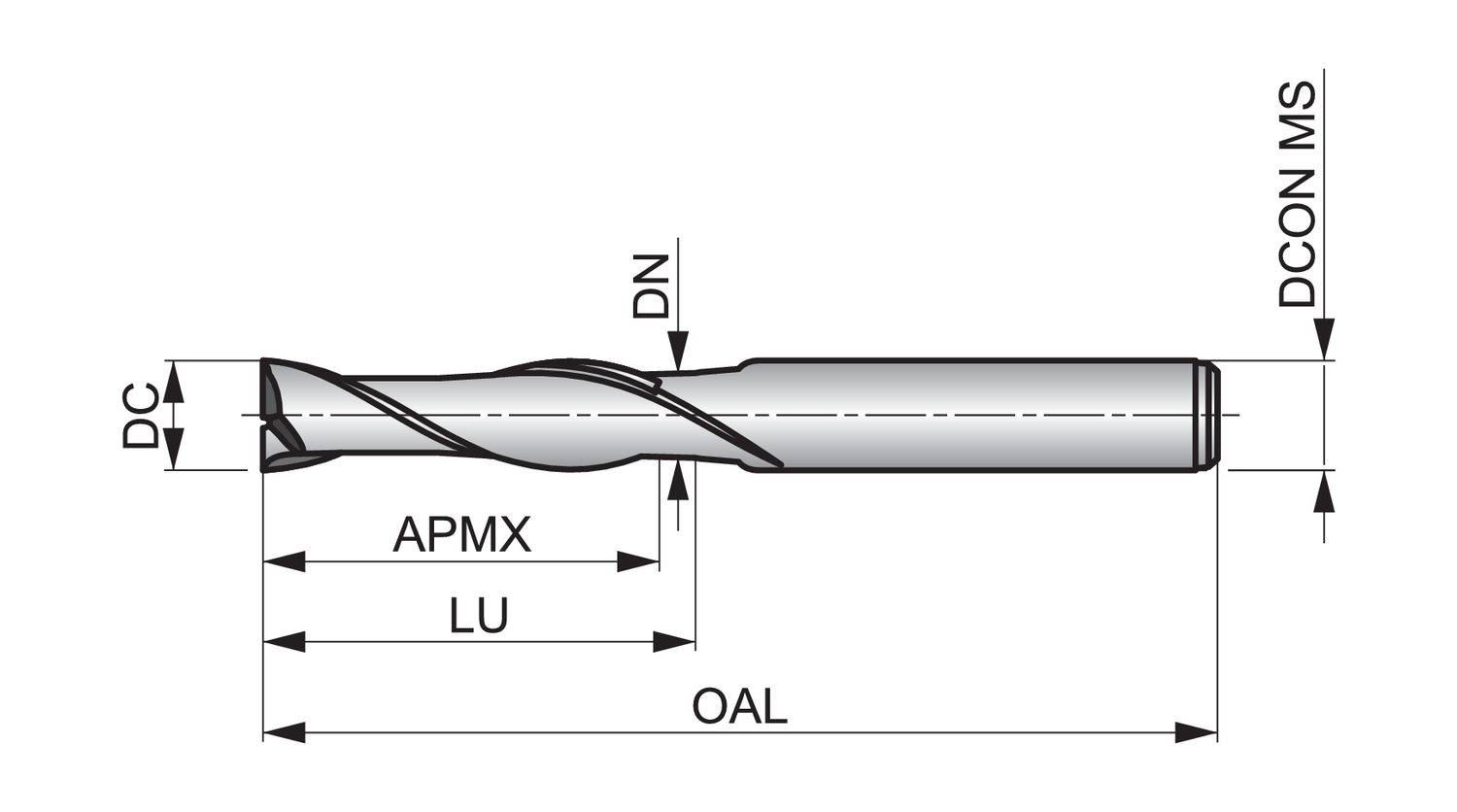

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Cut length
Long
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
2.7559
Depth of cut maximum - millimeter (APMX)
70
EDP number
56462
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HSS-E
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5984257
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.7677
Neck diameter - millimeter (DN)
19.5
Ordering code ANSI
C12220.0
Overall length - inch (OAL)
6.2992
Overall length - millimeter (OAL)
160
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
12
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
85.5
C122 2 flute milling cutters are very versatile and can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron and the 2 flute design gives high rigidity, making the tools great for milling standard slots.
The bright finish means the tools give clean and accurate results as the workpiece material does not stick to the cutting edges.
Manufactured from High Speed cobalt, the tools have a longer tool life and will give better performance.
C122 milling cutter are long series cutters, designed for machining deep slots in difficult to reach areas
