Dormer C94810.0 5985181 10.00 mm slot drill, HSS-E-PM powder metallurgy cobalt high speed steel, 4-flute roughing end mill with 35° helix angle and 12° radial rake. DIN 844 L standard, 10 mm connection diameter, 45 mm max depth of cut. Suitable for K cast iron, M stainless steel, N non-ferrous metals, P steel and cast steel, S high-temperature alloys.

Basic Standard

DIN 844 L

Coating

ALCRONA

Coating property (CTP)

1

Connection diameter - inch (DCON MS)

0.3937

Connection diameter - millimeter (DCON MS)

10

Cut length

Long

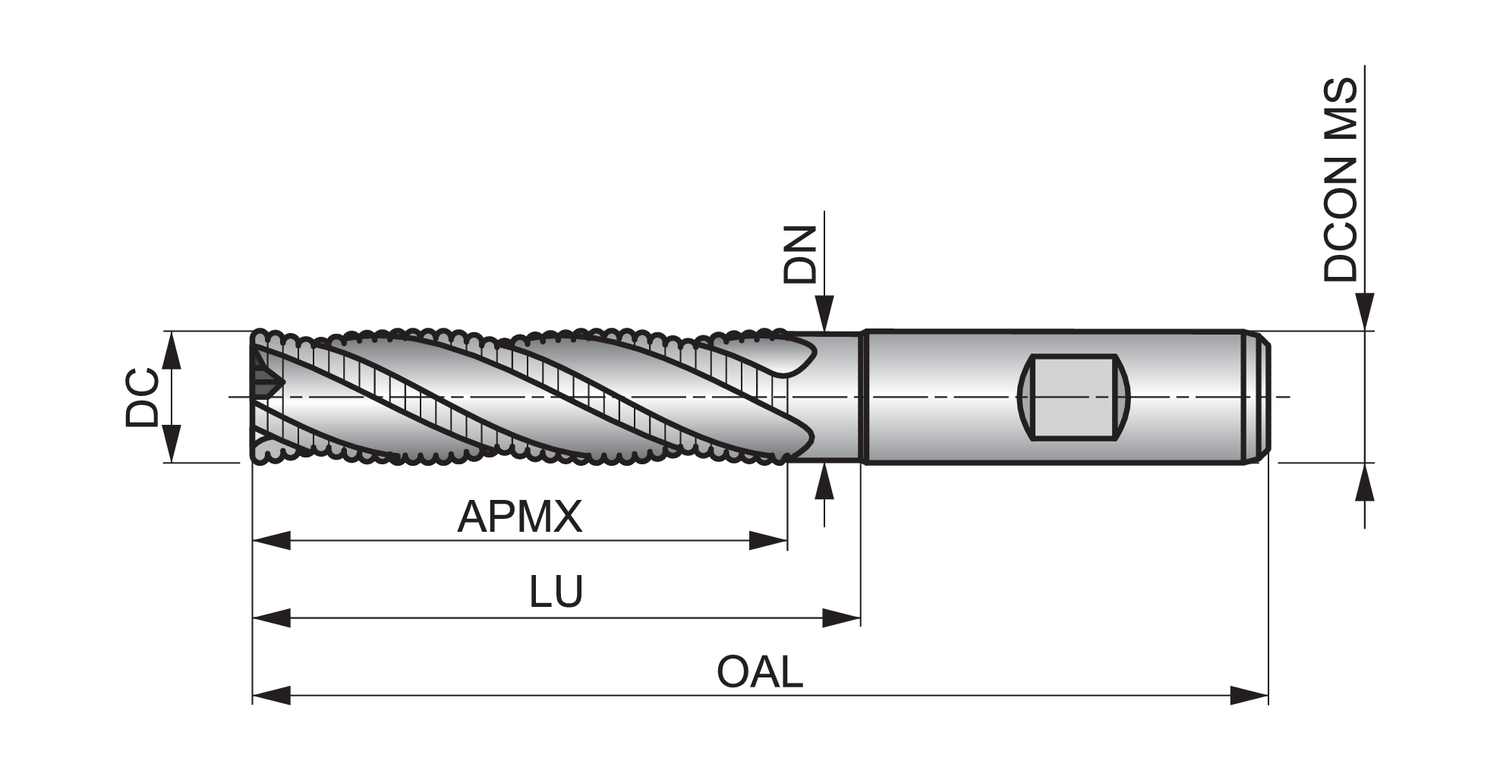

Cutting diameter - inch (DC)

0.3937

Cutting diameter - millimeter (DC)

10

Cutting diameter tolerance class (TCDC)

k12

Depth of cut maximum - inch (APMX)

1.7717

Depth of cut maximum - millimeter (APMX)

45

EDP number

128619

Flute count (NOF)

4

Flute helix angle (FHA)

35

Material

HSS-E-PM

MID number

5985181

Mill Profile

NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker

Neck diameter - inch (DN)

0.374

Neck diameter - millimeter (DN)

9.5

Ordering code ANSI

C94810.0

Overall length - inch (OAL)

3.7402

Overall length - millimeter (OAL)

95

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

12

Shank

Weldon shank DIN 1835B

Usable Length - millimeter (LU)

54.5
