Dormer S1471/8 7648894 Ball-Nosed End Mill 4FL 1/8 inch
MODEL 7648894
$28.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER"
Coating
Bright

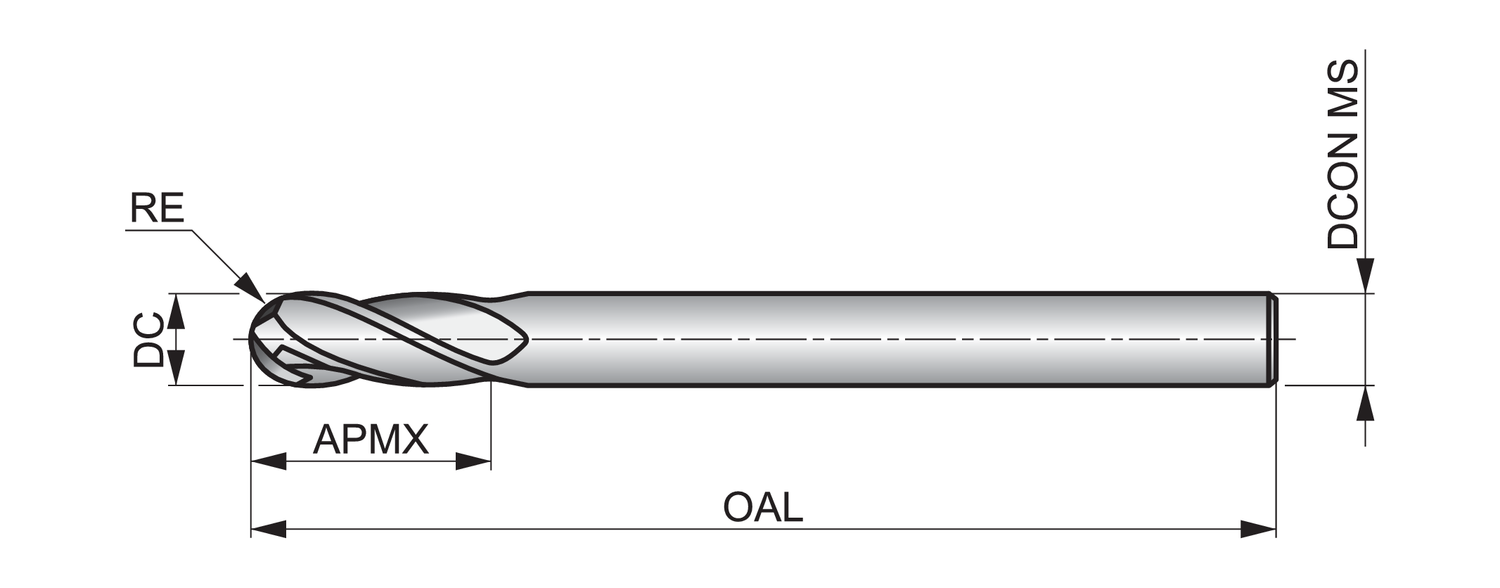

Connection diameter - fractional inch (DCON MS)
1/8
Connection diameter - inch (DCON MS)
0.125
Connection diameter - millimeter (DCON MS)
3.18
Corner radius - fractional inch (RE)
1/16
Corner radius - inch (RE)
0.063
Cut length
Extra long
Cutting diameter - fractional inch (DC)
1/8
Cutting diameter - inch (DC)
0.125
Cutting diameter - millimeter (DC)
3.18
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1
EDP number
7648894
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648894
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1471/8
Overall length - fractional inch (OAL)
3"
Overall length - inch (OAL)
3
Overall length - millimeter (OAL)
76.2
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S147 4-flute end mills have ball nose geometry for high performance contouring of complex surfaces and are manufactured from premium carbide for longer tool life and superior performance.
The bright finish ensures an accurate, clean result by preventing workpiece material from sticking to the cutting surfaces of the tool, whilst the extra long shank length gives high rigidity for increased strength and to cut down on vibration.
S147 4-flute ball nose milling cutters can be used to machine steels, cast iron and stainless steels when plunging, ramping and profile milling
