Dormer S2394.0 7648880 square end mill, 4.00mm cutting diameter, solid carbide (HM), 4-flute, 30° helix angle, 14mm max depth of cut. Suitable for K (cast iron), M (stainless steel), and P (steel/cast steel) materials. DORMER standard.
MODEL 7648880
$32.50 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

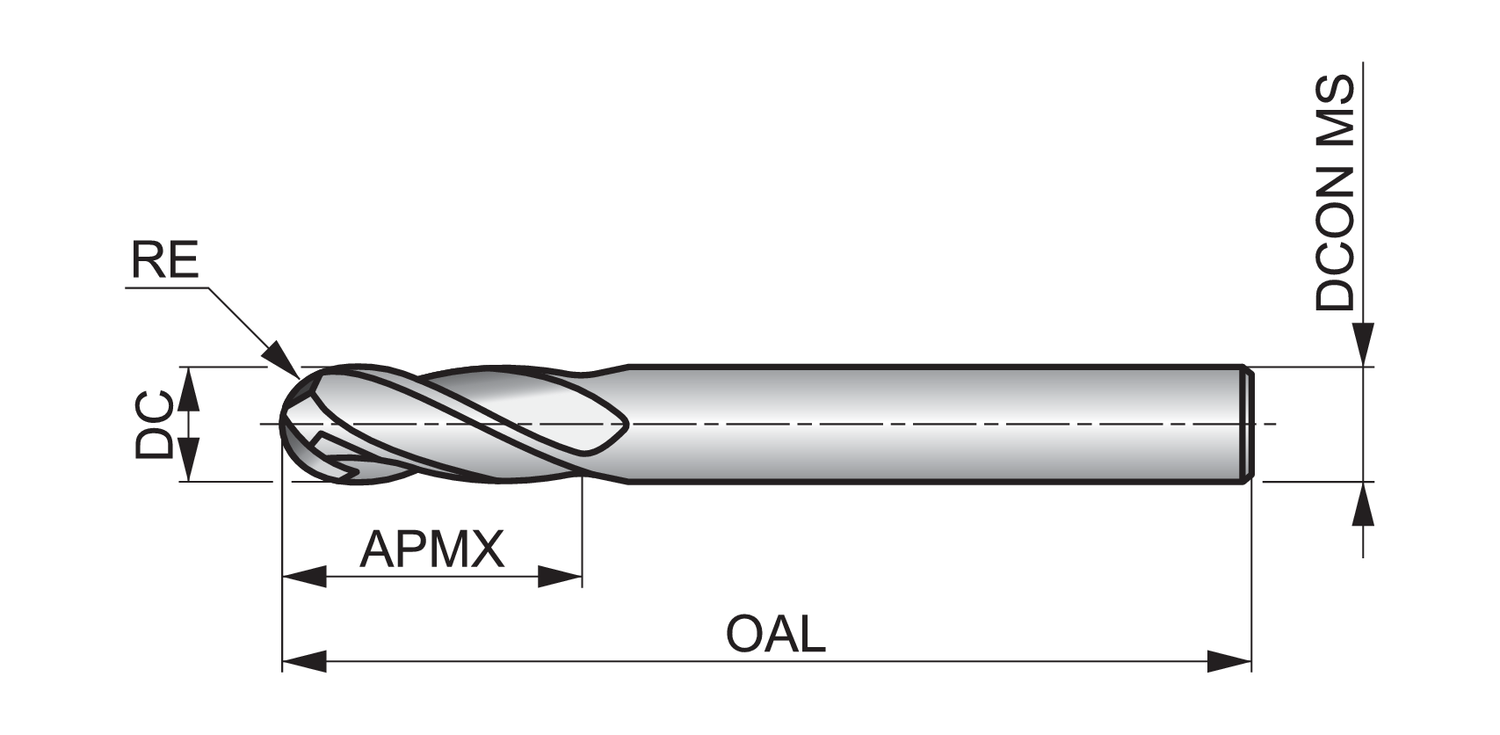

Connection diameter - inch (DCON MS)
0.1575
Connection diameter - millimeter (DCON MS)
4
Corner radius - inch (RE)
0.079
Corner radius - millimeter (RE)
2
Cut length
Medium
Cutting diameter - inch (DC)
0.1575
Cutting diameter - millimeter (DC)
4
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - inch (APMX)
0.5512
Depth of cut maximum - millimeter (APMX)
14
EDP number
7648880
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel
MID number
7648880
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2394.0
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S239 4-flute end mills have an extra long shank to provide high rigidity for standard profile milling, and ball nose geometry designed for high performance contouring of complex surfaces.
The premium carbide used in manufacture means you can expect superior performance and longer tool life, and the tools can be used for plunging, ramping and profile milling in steel, stainless steels and cast irons, making them a very versatile choice.
S239 4-flute ball nosed milling cutters come with an aluminium titanium nitride coating which guarantees clean and accurate results by preventing workpiece material from sticking to the cutting surfaces of the tool
