Dormer S26020.0 6706923 End Mill 20.00 mm
MODEL 6706923
$361.93 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN
Coating property (CTP)
1

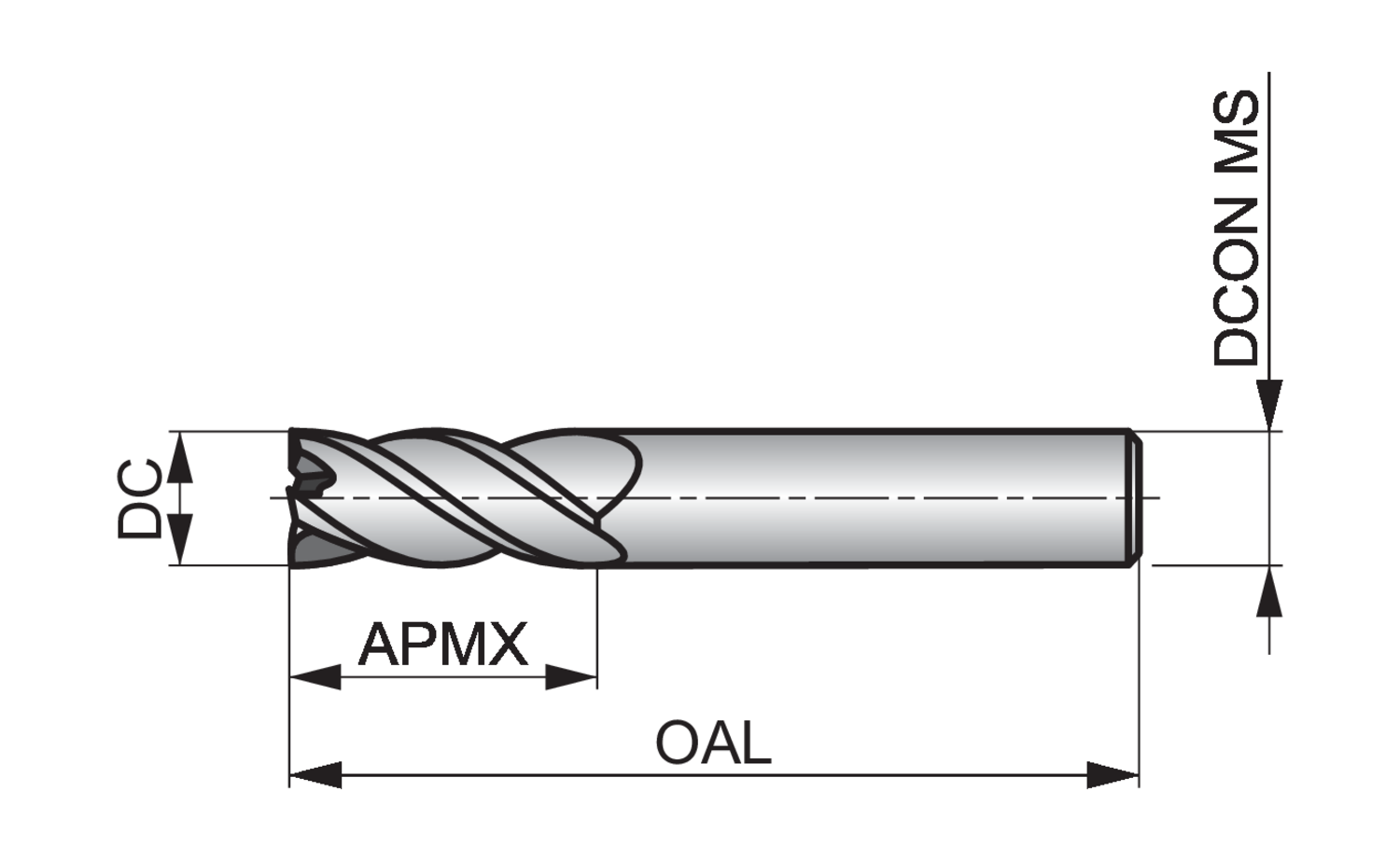

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Cut length
Short
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
h9
Cutting pitch differential (CPDF)
1
Depth of cut maximum - inch (APMX)
1.4961
Depth of cut maximum - millimeter (APMX)
38
EDP number
46706923
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material
HM
Material application
H - Hardened materials, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706923
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S26020.0
Overall length - inch (OAL)
4.0945
Overall length - millimeter (OAL)
104
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
4
Shank
Cylindrical shank DIN 6535 HA
S260 4-flute milling cutters have a 40 degree helix with an unequal flute divide which reduces vibration and improves surface finish when used in CNC machines.
These application milling cutters have been designed specifically for milling heat resistant alloys and other difficult to machine materials, with a medium flute length for high rigidity for standard profile milling.
S260 milling cutters are manufactured from premium carbide for great performance and a longer tool life.
The aluminium chrome nitride coating further increases tool life and also improves performance when milling difficult to machine materials
