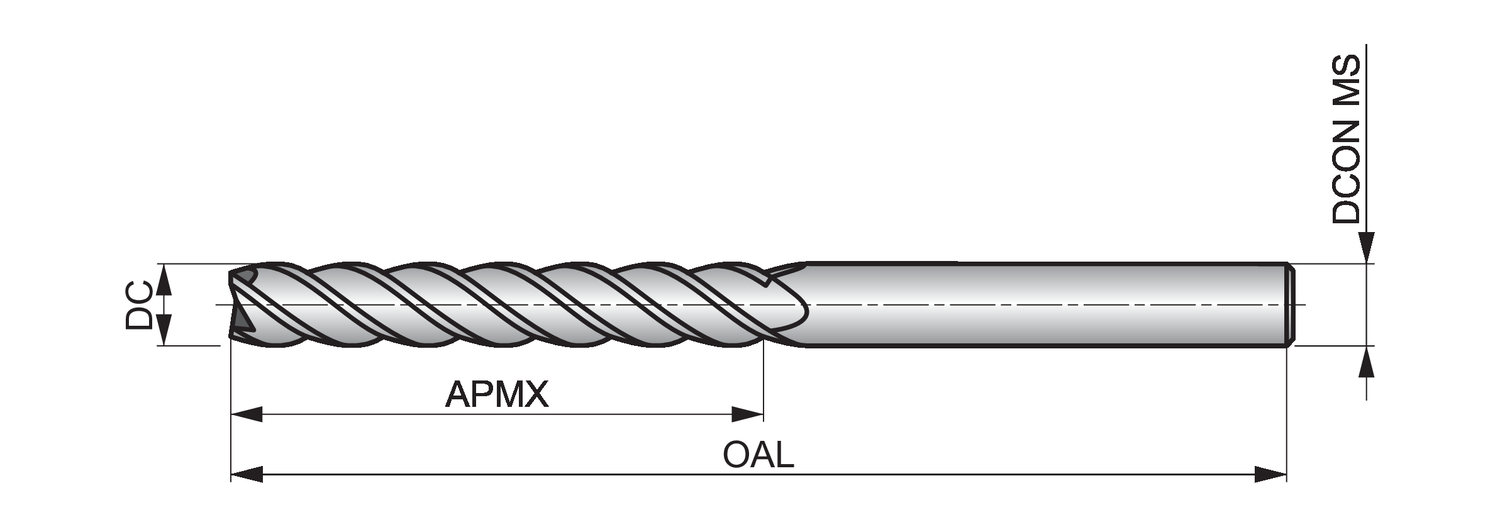

Dormer S71810.0 6706774 square end mill, 10.00mm cutting diameter, 4-flute solid carbide (HM) with 40° helix angle and 10° radial rake. Suitable for cast iron (K), stainless steel (M), steel/ cast steel (P), and high-temperature alloys (S). 10mm connection diameter, 57mm max depth of cut. DORMER standard.

Basic Standard

DORMER

Coating

AlCrN

Coating property (CTP)

1

Connection diameter - inch (DCON MS)

0.3937

Connection diameter - millimeter (DCON MS)

10

Cut length

Extra long

Cutting diameter - inch (DC)

0.3937

Cutting diameter - millimeter (DC)

10

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

2.2441

Depth of cut maximum - millimeter (APMX)

57

EDP number

46706774

Flute count (NOF)

4

Flute helix angle (FHA)

40

Material

HM

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

6706774

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S71810.0

Overall length - inch (OAL)

4.9213

Overall length - millimeter (OAL)

125

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

10

Shank

Cylindrical shank DIN 6535 HA
