Dormer S7635.0XR0.3 6706846 solid carbide corner radius end mill, 5.00mm cutting diameter, 0.3mm corner radius, 4-flute, 40° helix angle. Suitable for K (cast iron), M (stainless steel), P (steel/cast steel), and S (high-temperature alloys) materials. DORMER standard, 15mm max depth of cut.
MODEL 6706846
$92.83 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN
Coating property (CTP)
1

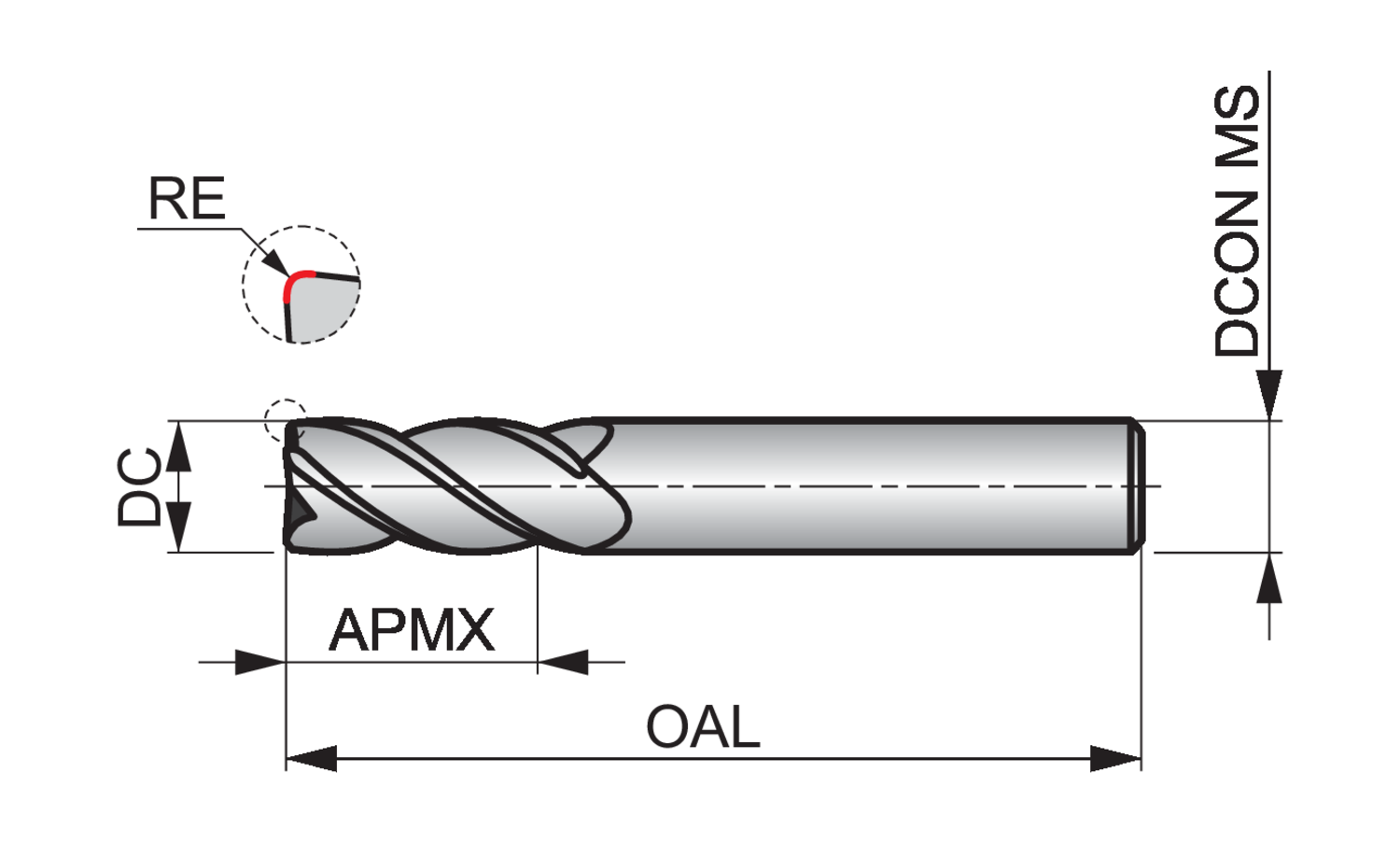

Connection diameter - inch (DCON MS)
0.1969
Connection diameter - millimeter (DCON MS)
5
Corner radius - inch (RE)
0.0118
Corner radius - millimeter (RE)
0.3
Cut length
Short
Cutting diameter - inch (DC)
0.1969
Cutting diameter - millimeter (DC)
5
Cutting diameter tolerance class (TCDC)
h9
Cutting pitch differential (CPDF)
1
Depth of cut maximum - inch (APMX)
0.5906
Depth of cut maximum - millimeter (APMX)
15
EDP number
46706846
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706846
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S7635.0XR0.3
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
Part of Dormer’s extensive range of carbide cutters, S763 4-flute milling cutters have a medium length flute with corner radius, giving high rigidity and making them perfect for standard profile milling where a fillet radius is required.
They are manufactured from premium carbide to give you longer tool life and improved performance, whilst the aluminium chrome nitride coating further improves performance when milling materials which are difficult to machine.
They come with a 40 degree helix with unequal flute divide which is designed to reduce vibration for a better surface finish when CNC machining.
Suitable for plunging, ramping and profile milling in stainless steels, steels and cast iron, S763 4-flute corner radius end mills are truly versatile products
