Dormer E02510-24 5974031 UNC Machine Tap Spiral Point No.10 x 24

Name: Dormer E02510-24 5974031 UNC Machine Tap Spiral Point No.10 x 24
Brand: Dormer Pramet
Price: 11.47 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5974031

BRAND

Dormer Pramet

SKU

6080664

WEIGHT

0.023 lb

UOM

each

$11.47 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ANSI

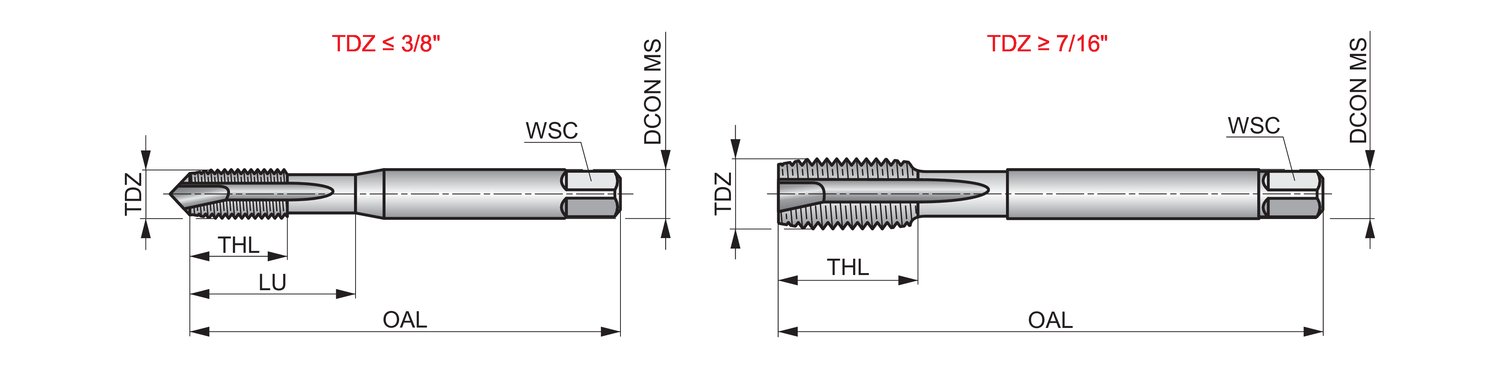

Clamping width - inch

0.152

Coating

Bright

Connection diameter - inch (DCON MS)

0.194

Connection diameter - millimeter (DCON MS)

4.93

EDP number

581094

Flute count (NOF)

Flute Geometry (FDC)

Spiral Point Geometry

Hand (Cutting direction)

Right

Material

HSS-E-PM

Material application

N - Non-ferrous metals, P - Steel and cast steel

MID number

5974031

Ordering code ANSI

E02510-24

Overall length - fractional inch (OAL)

2.3/8

Overall length - inch (OAL)

2.375

Overall length - millimeter (OAL)

0.194

Premachined hole diameter - imperial (PHD)

N25

Premachined hole diameter - inch (PHD)

0.1535

Premachined hole diameter - millimeter (PHD)

3.9

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

B 3.5 - 5

Thread diameter - millimeter (TD)

N25

Thread diameter size (TDZ)

Thread form (THFT)

UNC - Unified Coarse

Threading length - inch (THL)

0.4303

Threads per inch (TPI)

Tolerance limit

Usable length (ULDR)

2.5

Usable Length - inch (LU)

0.8434

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 10 with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.1940" shank and 0.1520" square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys.
