Dormer EP10M14X1.0 5973468 Machine Tap Spiral Point 3FL M14 x 1.00 mm
MODEL 5973468
$60.12 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 374

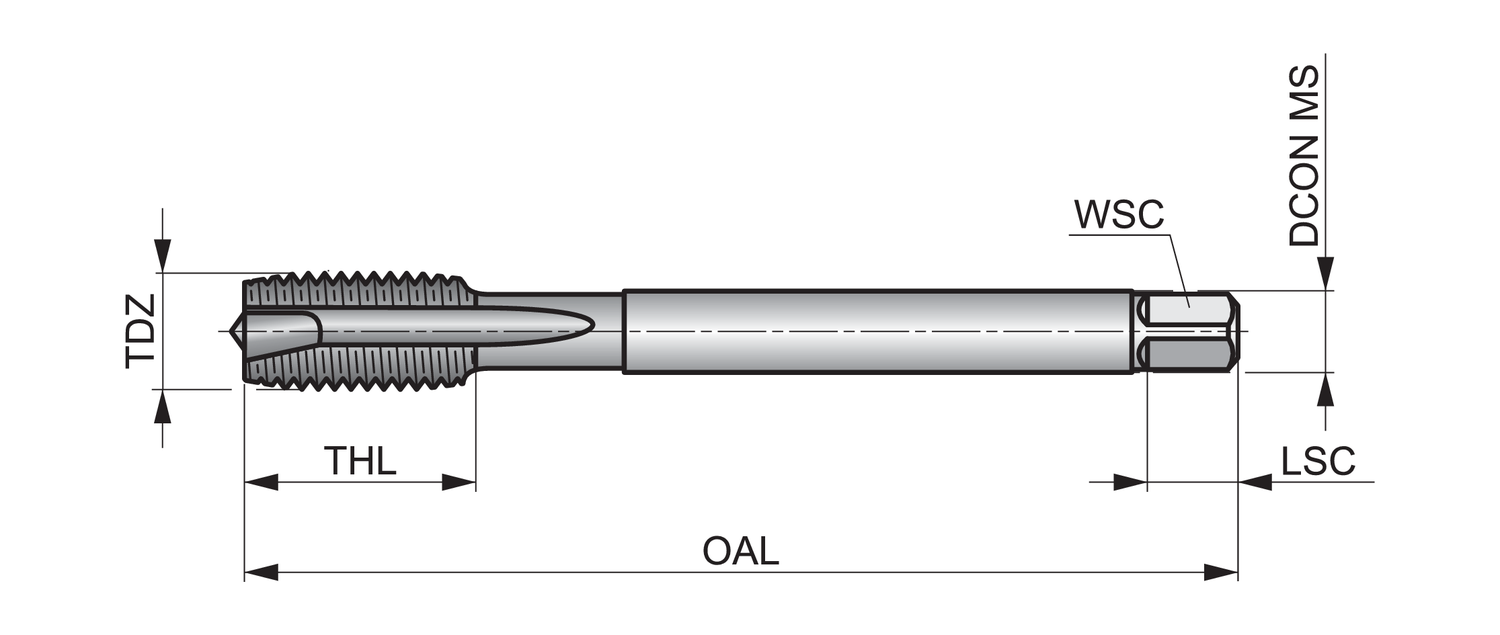

Clamping Length - millimeter (LSC)
12
Clamping width - fractional inch (WSC)
9
Clamping width - inch
0.3543
Coating
Bright
Connection diameter - inch (DCON MS)
11
EDP number
137451
Flute count (NOF)
3
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5973468
Ordering code ANSI
EP10M14X1.0
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Premachined hole diameter - inch (PHD)
0.5118
Premachined hole diameter - millimeter (PHD)
13
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
B 3.5 - 5
Thread diameter size (TDZ)
14
Thread form (THFT)
MF - Metric fine
Thread pitch - inch (TP)
0.0394
Thread pitch - millimeter (TP)
1
Threading length - inch (THL)
0.8268
Threading length - millimeter (THL)
21
Tolerance limit
D7
Usable length (ULDR)
2.5
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M14 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium.
