Dormer F1305/8 5977888 UNF Gun Nosed Die ISO 2568 5/8 inch x 18
MODEL 5977888
$107.73 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ISO 2568

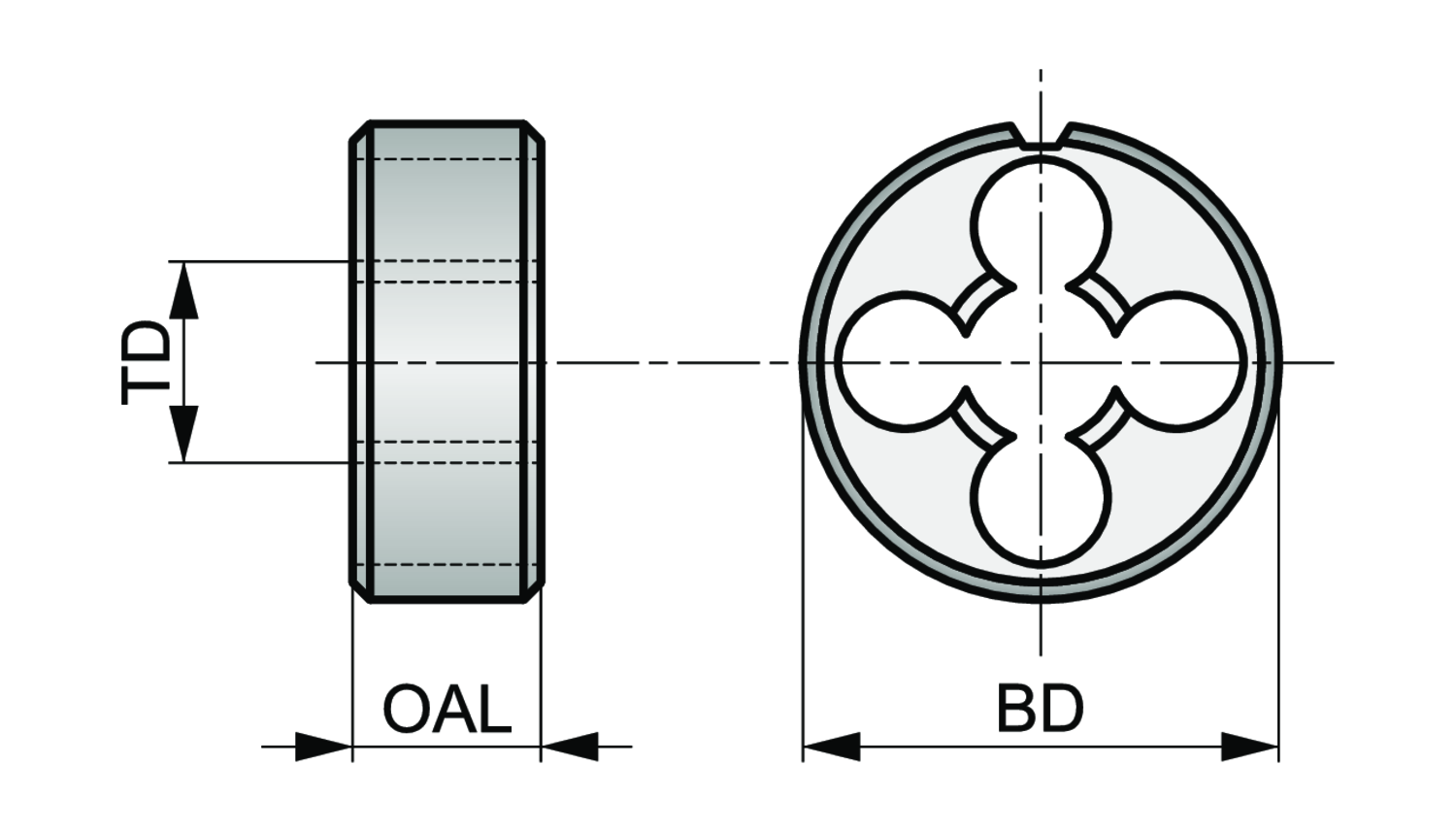

Body diameter - inch (BD)
1.7717
Body diameter - millimeter (BD)
45
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75
EDP number
104538
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5977888
Ordering code ANSI
F1305/8
Overall length - inch (OAL)
0.5512
Overall length - millimeter (OAL)
14
Thread diameter - millimeter (TD)
15.88
Thread diameter size (TDZ)
5/8
Thread form (THFT)
UNF - Unified Fine
Threads per inch (TPI)
18
Solid round die with a gun nose, for Unified National Fine thread UNF 5/8" with 18 TPI and 2A class of fit, dimensions according to ISO 2568 standard with 45mm outside diameter and 14mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
