Dormer F312M12X1.0 5977937 threading die, M12x1.0 thread, High Speed Steel (HSS), BS 1127:1950 standard. For K (cast iron), M (stainless steel), N (non-ferrous metals), and P (steel/cast steel) materials. 7/16" overall length, 1.75 die chamfer to pitch ratio.

Name: Dormer F312M12X1.0 5977937 threading die, M12x1.0 thread, High Speed Steel (HSS), BS 1127:1950 standard. For K (cast iron), M (stainless steel), N (no
Brand: Dormer Pramet
Price: 85.67 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5977937

BRAND

Dormer Pramet

SKU

6083143

WEIGHT

0.088 lb

UOM

each

$85.67 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

BS 1127:1950

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

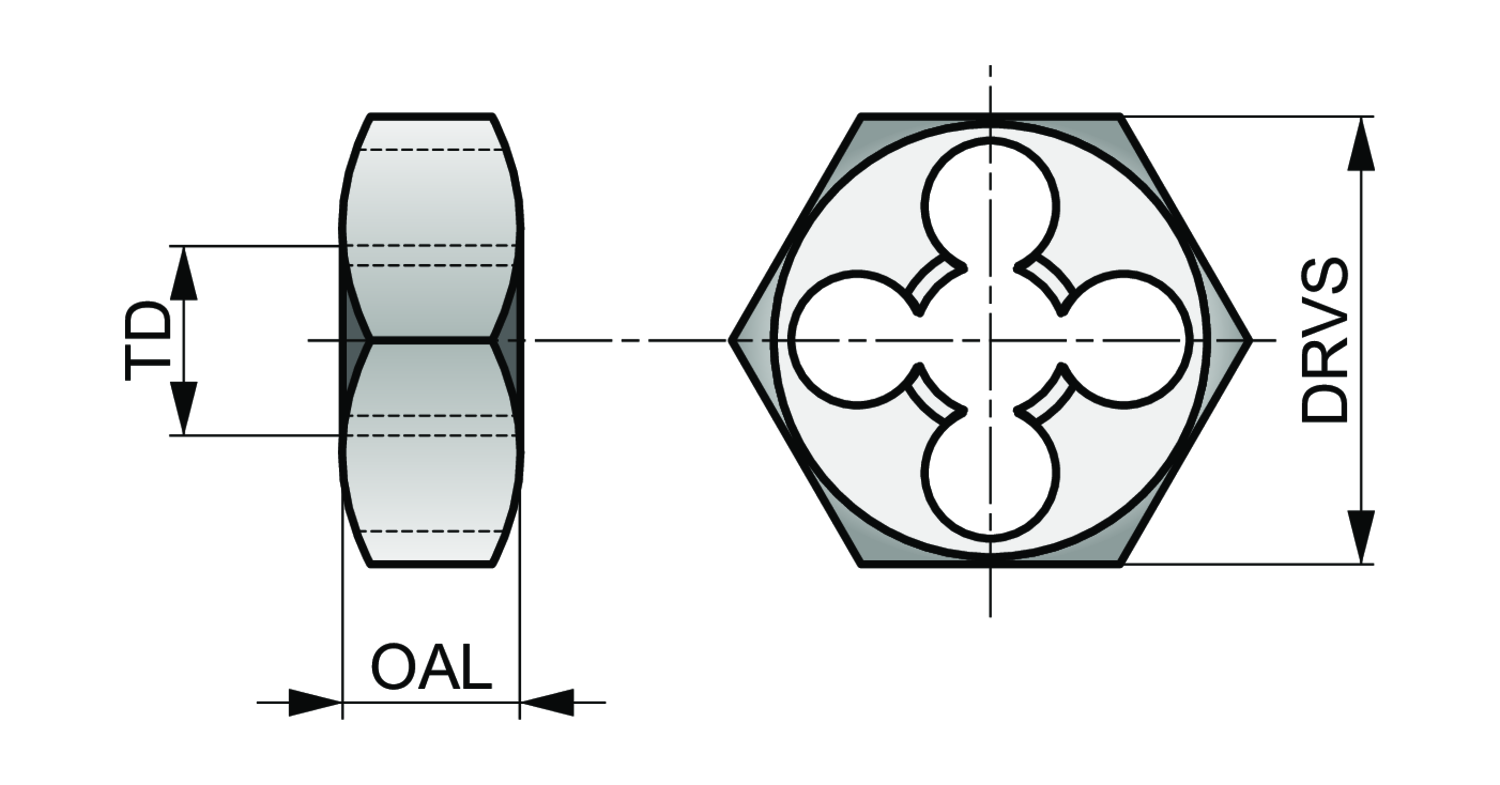

Drive size - inch (DRVS)

1.01

Drive size - millimeter (DRVS)

25.65

EDP number

206393

Hand (Cutting direction)

Right

Material

HSS

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5977937

Ordering code ANSI

F312M12X1.0

Overall length - fractional inch (OAL)

7/16

Overall length - millimeter (OAL)

11.11

Thread diameter - millimeter (TD)

Thread diameter size (TDZ)

Thread form (THFT)

MF - Metric fine

Thread pitch - millimeter (TP)

Hexagon die nut, for ISO-Metric Fine thread M12 with 1.00 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 1.0100" width across flat and 7/16" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
