Image for Illustration purposes only. Actual product may vary
Dormer F3301/4X1 5978757 UNF Adjustable Dies 1/4 inch x 28
MODEL 5978757
$59.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
BS 1127:1950

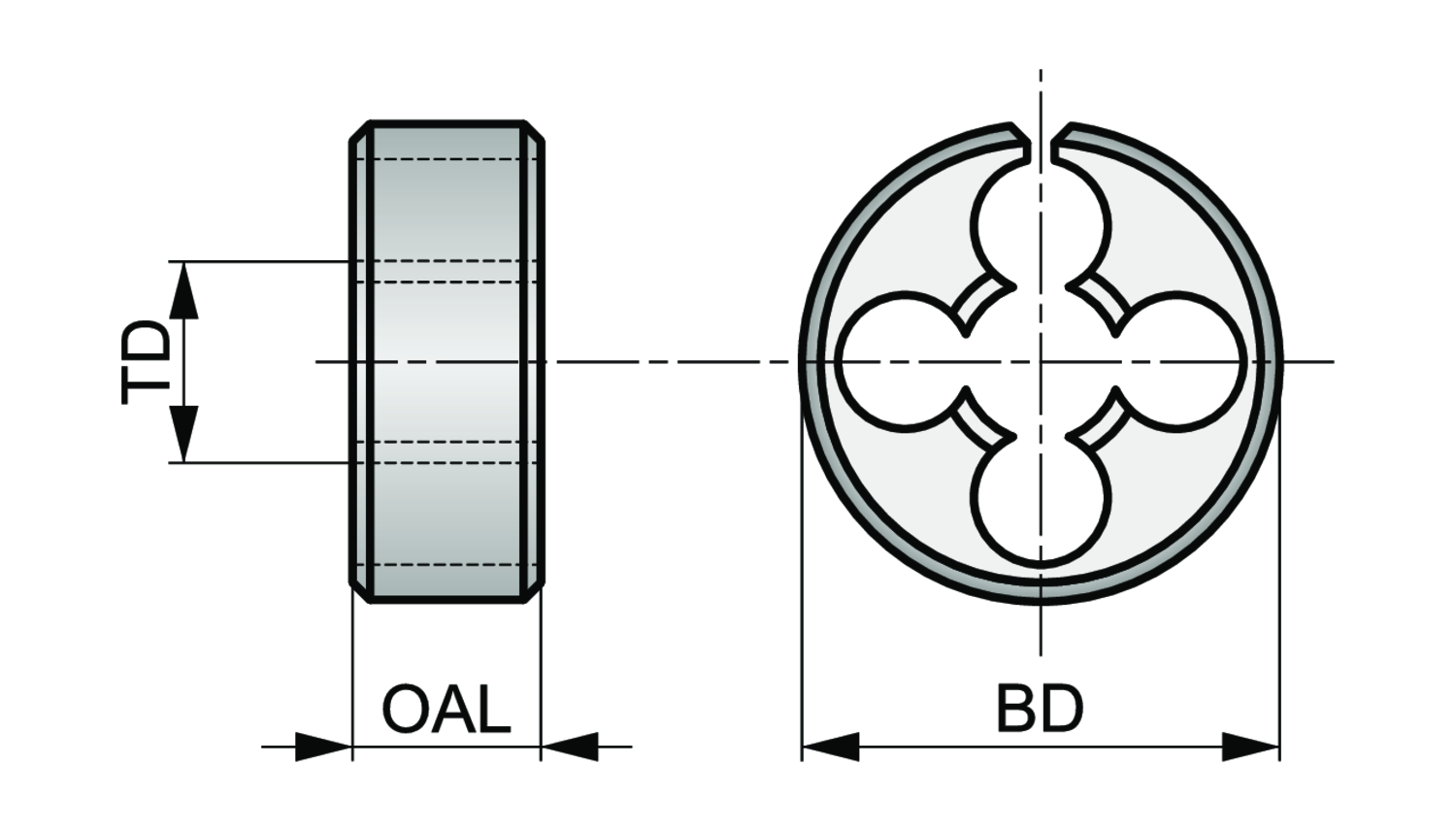

Body diameter - fractional inch (BD)
3"
Body diameter - inch (BD)
1
Body diameter - millimeter (BD)
25.4
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75
EDP number
207420
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5978757
Ordering code ANSI
F3301/4X1
Overall length - fractional inch (OAL)
7/8
Overall length - millimeter (OAL)
9.53
Thread diameter - millimeter (TD)
28.58
Thread diameter size (TDZ)
1.1/8
Thread form (THFT)
UNF - Unified Fine
Threads per inch (TPI)
28
Adjustable circular split die, for Unified National Fine thread UNF 1/4" with 28 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 1" outside diameter and 3/8" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
