Dormer J2104.5X1.0 6821302 solid carbide thread mill, M6x1.00 thread, 3-flute spiral with 27° helix angle, 4.5mm cutting diameter, 57mm overall length. Suitable for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard.

Basic Standard

DORMER

Coating

Alcrona Pro

Coating property (CTP)

1

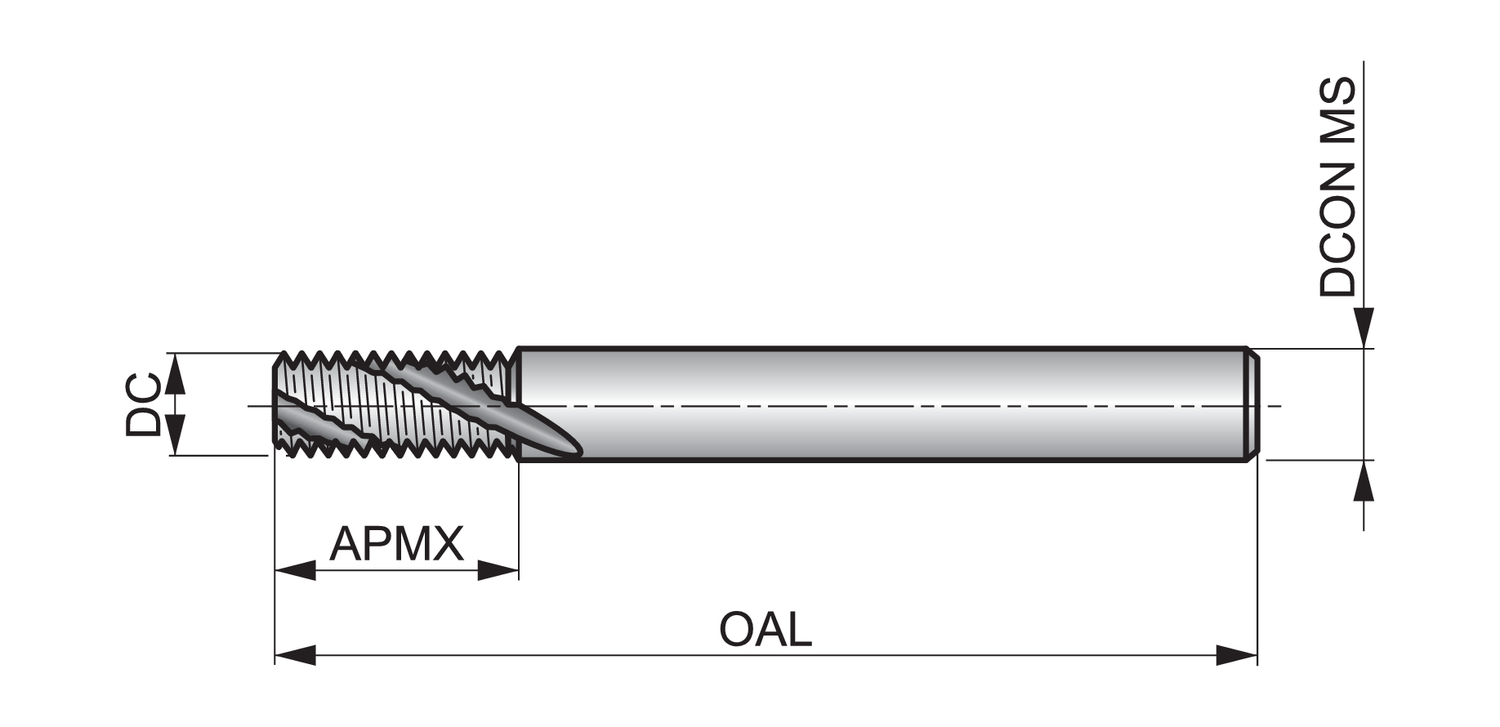

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

6

Cutting diameter - inch (DC)

0.1772

Cutting diameter - millimeter (DC)

4.5

Depth of cut maximum - millimeter (APMX)

13

EDP number

46821302

Flute count (NOF)

3

Flute Geometry (FDC)

Spiral Flute Geometry

Flute helix angle (FHA)

27

Hand (Cutting direction)

Right

Material

HM

MID number

6821302

Ordering code ANSI

J2104.5X1.0

Overall length - inch (OAL)

2.2441

Overall length - millimeter (OAL)

57

Shank

Cylindrical shank DIN 6535 HA

Thread diameter size (TDZ)

M6

Thread form (THFT)

M - Metric coarse

Thread pitch - millimeter (TP)

1

Usable length (ULDR)

2
