Image for Illustration purposes only. Actual product may vary

Dormer Pramet P815C12.7X6.0 6814171 flame-shaped rotary burr, 12.70mm cutting diameter, 6mm shank, solid carbide (HM) construction. Suitable for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard.

Name: Dormer Pramet P815C12.7X6.0 6814171 flame-shaped rotary burr, 12.70mm cutting diameter, 6mm shank, solid carbide (HM) construction. Suitable for harde
Brand: Dormer Pramet
Price: 79.26 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6814171

BRAND

Dormer Pramet

SKU

6083836

WEIGHT

0.121 lb

UOM

each

$79.26 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Burr Shape

H - Flame Shape

Burr Type Code (BTC)

Double Cut Geometry

Coating

TiAlN

Coating property (CTP)

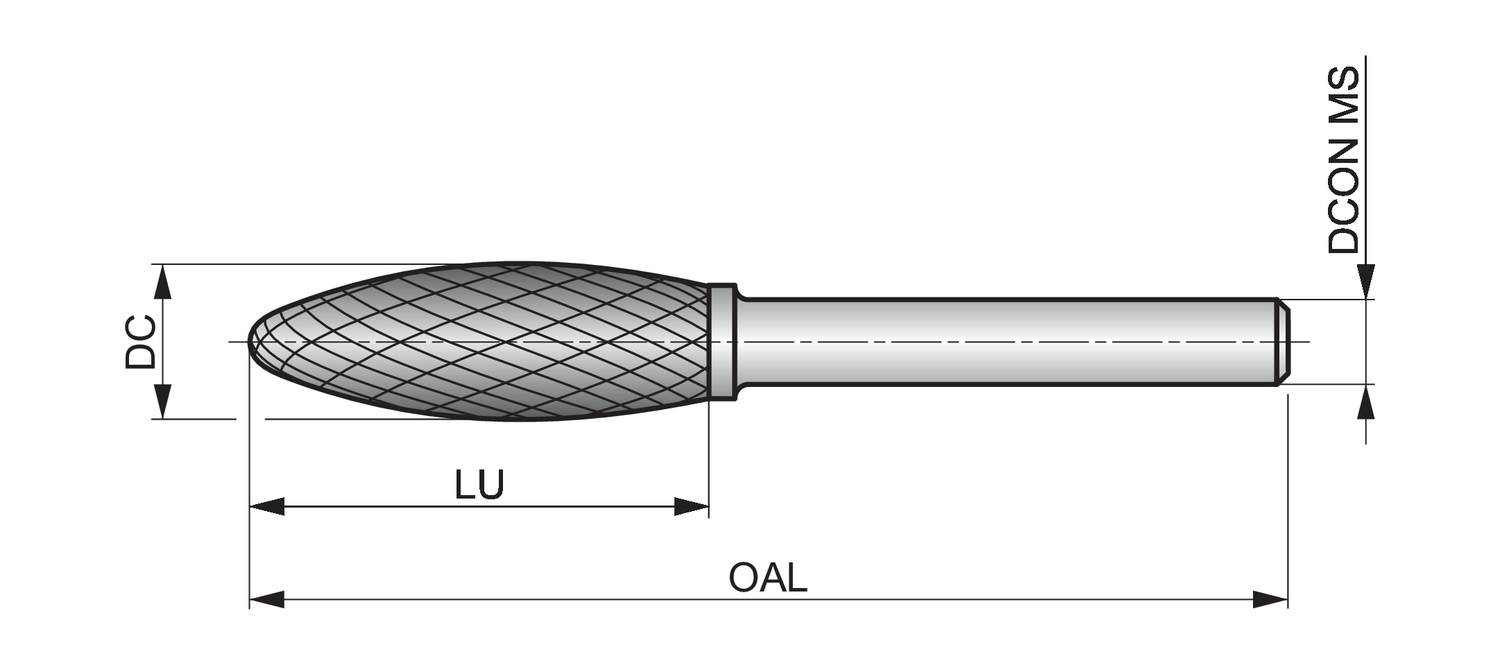

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cutting diameter - inch (DC)

0.5

Cutting diameter - millimeter (DC)

12.7

EDP number

46814171

Material

MID number

6814171

Ordering code ANSI

P815C12.7X6.0

Overall length - inch (OAL)

3.0315

Overall length - millimeter (OAL)

Shank

Cylindrical shank

Usable Length - millimeter (LU)

P815C rotary carbide burrs come with a toughened and hardened steel shank for extra rigidity and strength, which reduces vibration so the tool lasts longer.

Cut to a DC geometry, the burrs will give you efficient chip breaking to improve control when using by hand, whilst the titanium aluminium nitride coating increases the life of the burrs and improves performance when used at high speeds for long periods.

Manufactured from premium carbide material, they provide superior performance and further enhanced tool life at high speeds.

P815C rotary burrs, with skip flute geometry and Shape H (flame shape), will efficiently de-burr curved surfaces
