Image for Illustration purposes only. Actual product may vary

Dormer P84212.7X6.0 6814219 ball nosed cone rotary burr, 12.70mm cutting diameter, 6.0mm shank diameter, solid carbide (HM) construction. Designed for non-ferrous metals (N application), with a 14° profile angle and h7 shank tolerance. DORMER standard burr for deburring and finishing operations.

Name: Dormer P84212.7X6.0 6814219 ball nosed cone rotary burr, 12.70mm cutting diameter, 6.0mm shank diameter, solid carbide (HM) construction. Designed for
Brand: Dormer Pramet
Price: 55.42 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6814219

BRAND

Dormer Pramet

SKU

6083883

WEIGHT

0.101 lb

UOM

each

$55.42 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Burr Shape

L - Ball Nosed Cone Shape

Burr Type Code (BTC)

Aluminium Cut Geometry

Coating

Bright

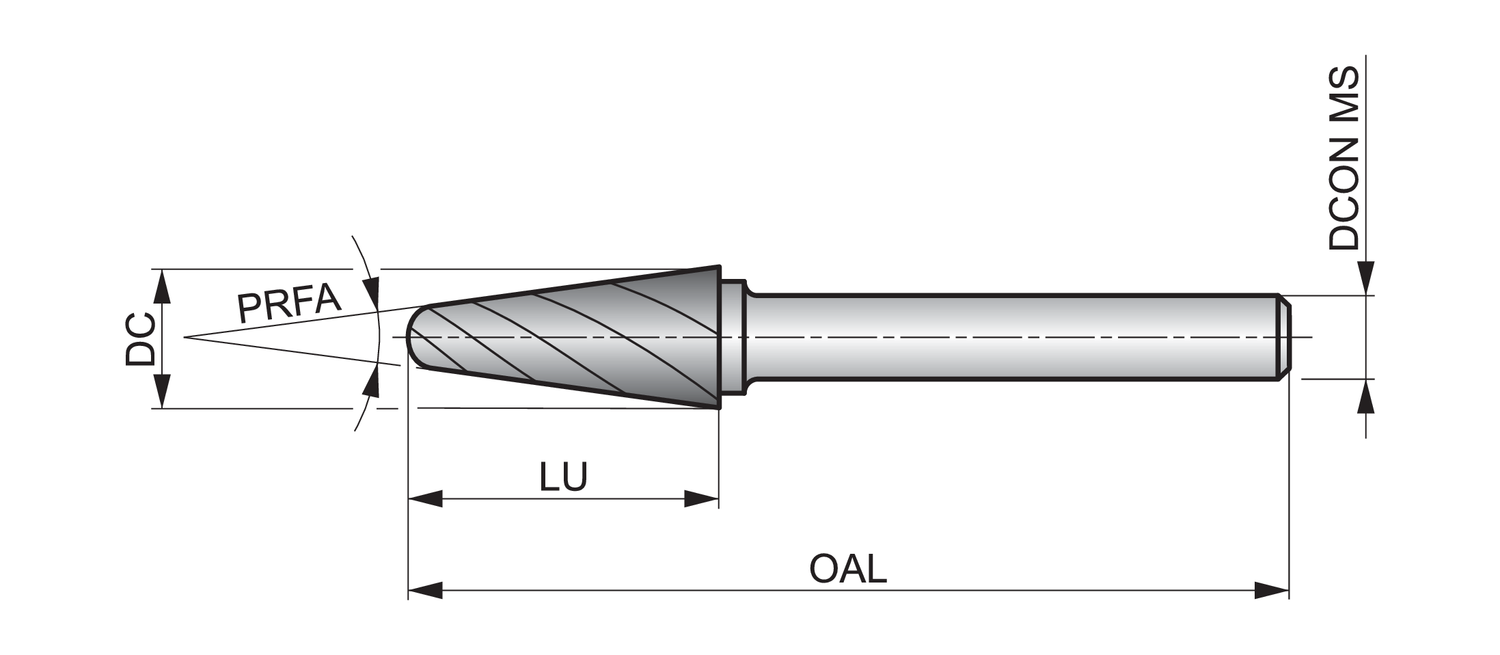

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cutting diameter - inch (DC)

0.5

Cutting diameter - millimeter (DC)

12.7

EDP number

46814219

Material

Material application

N - Non-ferrous metals

MID number

6814219

Ordering code ANSI

P84212.7X6.0

Overall length - inch (OAL)

3.0315

Overall length - millimeter (OAL)

Profile angle (PRFA)

Shank

Cylindrical shank

Usable Length - millimeter (LU)

P842 rotary carbide burrs from Dormer have a hardened and toughened steel shank, providing extra strength and rigidity to reduce vibration for a longer tool life.

The bright finish prevents workpiece material from sticking to the cutting surface so you get a clean result, whilst the premium carbide material used in manufacture ensures a tool offering superior performance and further extends tool life at high speeds.

P842 rotary burrs have a geometry designed to maximize material removal when working with aluminium, whilst the ball nosed cone shape (Shape L) with skip flutes is great for de-burring in tight corners
