Precision Twist Drill SPS-901/4 6000094 1/4" (0.25") HSS spot drill with bright finish and 90° point. Cylindrical shank, standard spiral, right-hand cut. 3/4" flute length, 2-1/2" overall length. Precision standard. For spotting and centering in steel, stainless steel, cast iron, and non-ferrous metals.
MODEL 6000094
$44.87 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 90°
Basic Standard
Precision
Coating
Bright

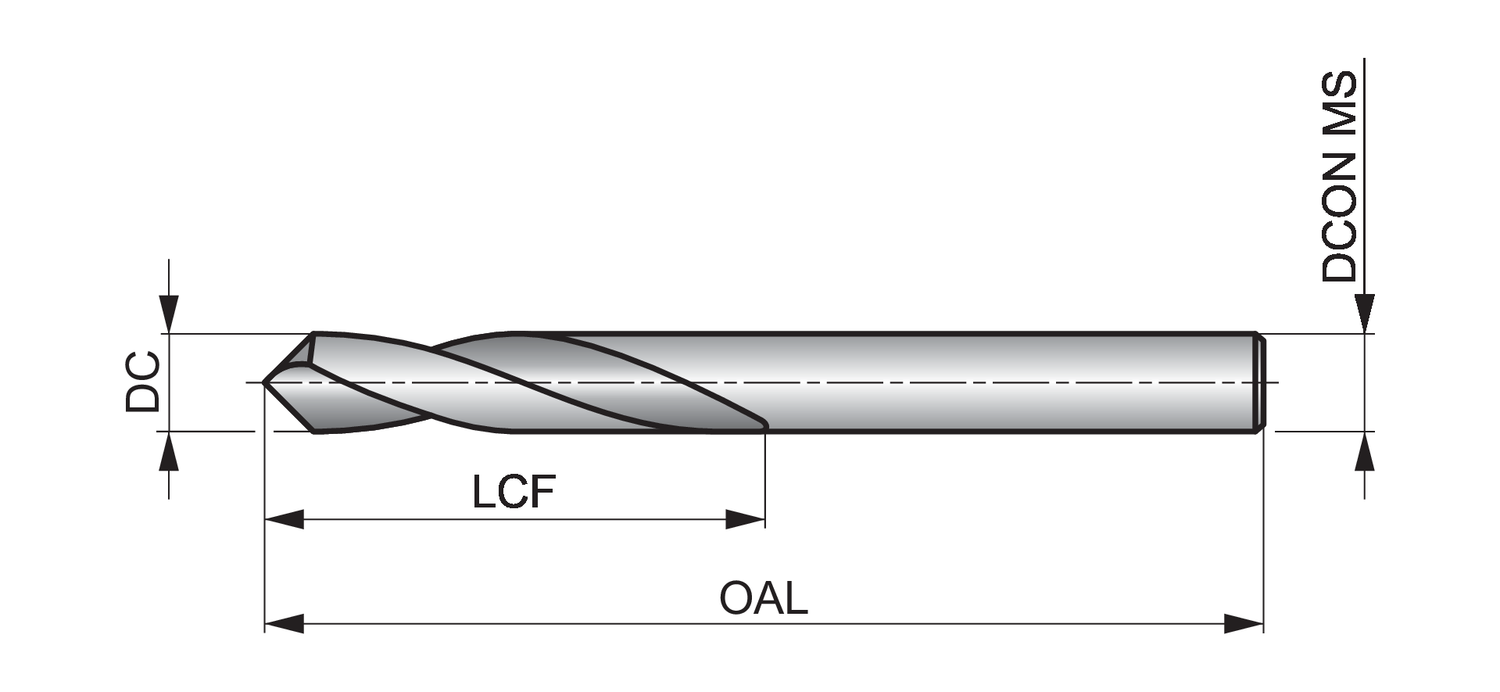

Cutting diameter - fractional inch (DC)
1/4
Cutting diameter - millimeter (DC)
6.35
Cutting Diameter Inch Decimal
0.25
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3/4
Length chip flute - inch (LCF)
0.75
Material
HSS
Overall length - fractional inch (OAL)
2.1/2
Overall length - inch (OAL)
2.5
Overall length - millimeter (OAL)
63.5
Point Angle (SIG)
90
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
SPS-90 High Speed Steel spotting drills are very versatile and can be used for drilling a great many materials including stainless steel, aluminum, cast iron and steel.
The bright finish prevents workpiece material from sticking to the cutting edges of the drill to ensure clean and accurate holes, whilst the short rigid design improves centering and accuracy.
The tools have a 90 degree conventional point for spotting holes including a 90 degree chamfer which is very accurate to accommodate standard screws.
