SL-5ES-3ST

Image for Illustration purposes only. Actual product may vary

View in markdown

Red Lion Sixnet SL-5ES-3ST is a 5-port unmanaged industrial Ethernet switch featuring one ST single-mode fiber port and four copper ports. It operates in temperatures from -40C to 60C, making it suitable for harsh industrial environments. This switch provides reliable network connectivity for automation and control applications.

MODEL SL-5ES-3ST

BRAND

Red Lion Controls

SKU

1357492

UOM

each

Contact supplier for technical support on: 717 767 6511 x2

Click for 5% off

$490.00 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: See conditions

Operating Temperature

-40C to 60C

Specifications:

Unmanaged Plug and Play Operation
5 Port Lite-Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- One 100BaseFX Singlemode 20km Fiber Port with ST Connectors
Compact, Space Saving Package
IEEE 802.3 Compliance
Extended Environmental Specifications
- -40° to 60°C Operating Temperature
- >1M+ Hours MTBF
Supports Full/Half Duplex Operation
MDIX Auto Sensing Cable
Auto Sensing Speed and Flow Control
Surge Protection on Power Inputs
Redundant Power Inputs (10-30 VDC)
LED Link/Activity Status Indication
Lexan DIN-Rail Enclosure

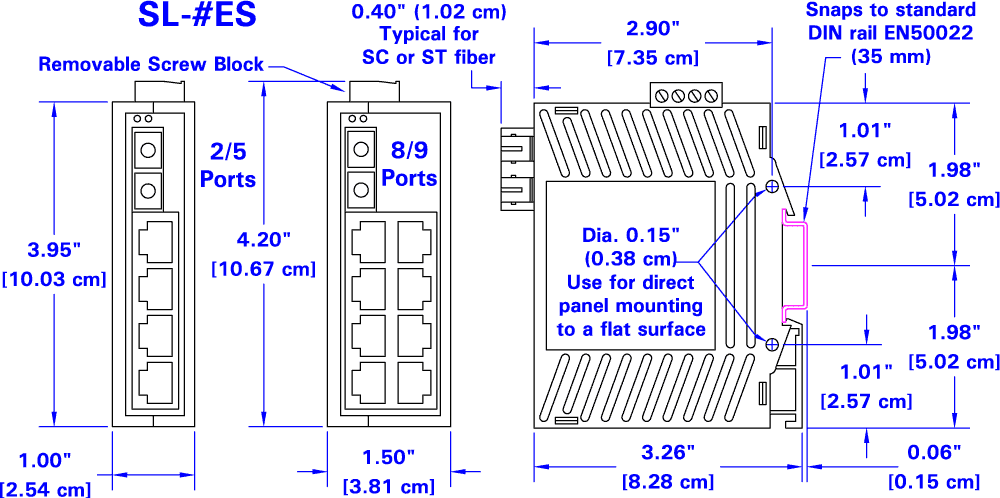

SL-ES Dimension Drawing_Drawing SL-ES Dimension Drawing

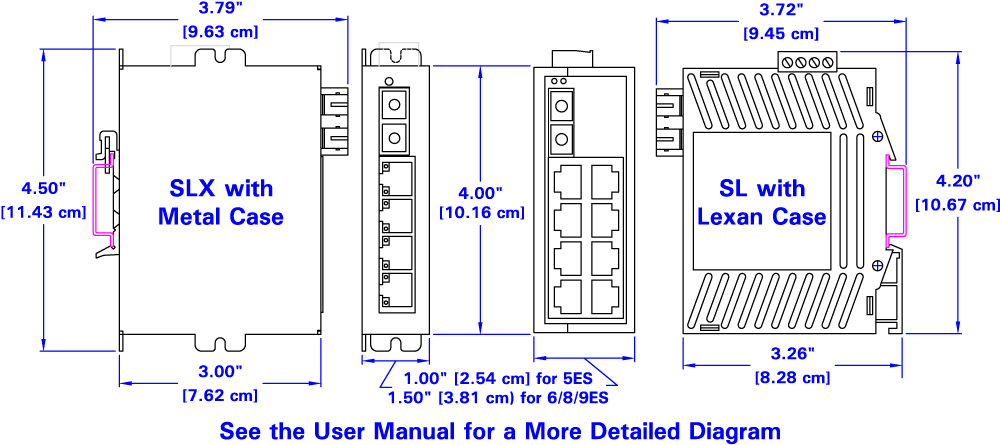

SL-SLX 5689ES Dimension Drawing_Drawing SL-SLX 5689ES Dimension Drawing

SL-SLX Product Manual - JAPANESE_SL-SLX Product Manual - JAPANESE

SL-SLX Quick Start Guide - JAPANESE_SL-SLX Quick Start Guide - JAPANESE

SL-SLX Series Quick Start Guide_SL-SLX Series Quick Start Guide

SL-SLX-589ES-123 Data Sheet_SL-SLX-589ES-123 Data Sheet

SL/SLX Product Manual_SLSLX Product Manual

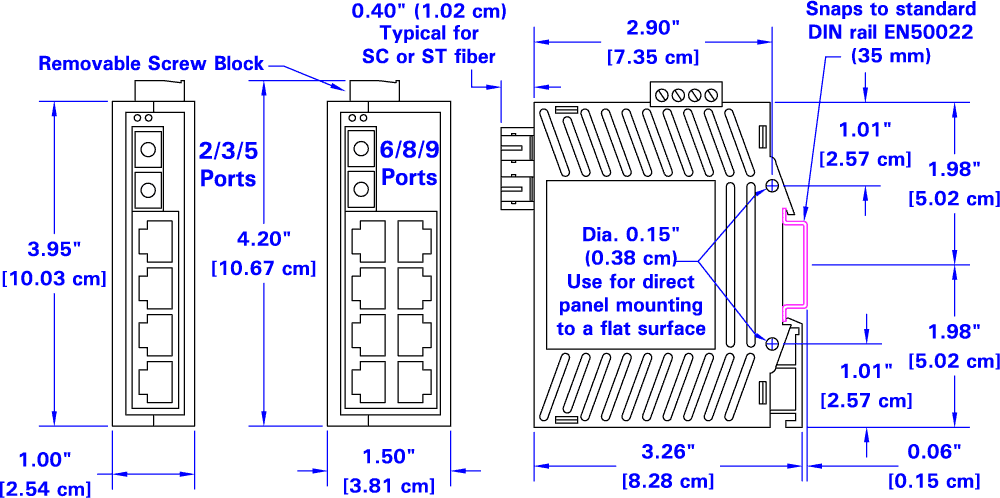

SL235689 ES12345 Dimension Drawing_Drawing SL235689 ES12345 Dimension Drawing

SL-ES CAD Drawing - dwg_SL-ES CAD Drawing - dwg.dwg

SL-ES CAD Drawing - dxf_SL-ES CAD Drawing - dxf.dxf

SL235689-ES12345 CAD Drawing_SL235689-ES12345 CAD Drawing.dxf
